SunWize Industrial Control Panels
Solar, Battery Backup, Hybrid Power Systems, Custom OEM, & More!
SunWize Power & Battery Control Panels are prewired aluminum panels for a variety of applications. Our standard control panels have all of the necessary switchgear to hook up a charge/load controller to a solar array, battery bank and load. Similarly, our Power Online control panels feature everything needed to control a battery charger & backup system. The control panels may also feature power supplies, battery chargers, Class 1 Division 2 components, custom load panels, DC:DC Converters, DC to AC Inverters, and many other features.
Some of our control panels are stocked for immediate fulfillment while other control panels are specifically designed for our customer’s applications. Each panel is designed for a different size of charge controller or battery charger (Power Ready & Power Online). For example the PRCP10 is designed for 10A charge controllers such as the SunSaver 10A-12V and the PRCP60 is designed for 45A or 60A charge controllers like the 60A TriStar MPPT.
SunWize has the capability to manufacture control panels to both ISO-9001, as well as, UL508A standards. For more info, to get help choosing the right control panel for your application, or if you need to discuss a custom project, use the contact us form or give us a call at (866) 827-6527
Power Ready Express Control Panels
SunWize Power Ready Express Control panels are standard design backplates for off-grid solar battery systems. These control panels come with the charge controller pre-installed on the backplage, along with all other required hardware to use as a complete control panel.
Control panels will fit up to (1) 40A MPPT charge controller, along with all switch gear, wire, surge suppression, terminal blocks, distribution blocks, DIN rail, etc.
Looking for complete Power Ready Express systems instead of control panels? Click here to view our complete line of Power Online systems
Morningstar – Data Sheet PWM
Phocos – Data Sheet PWM
|Part #||Charger Controller||Nominal Voltage||LVD||Digital Display||Lighting Controls|
|230031||SunSaver SS-6-12V||12 VDC||No||No||No|
|230032||SunSaver SS-6L-12V||12 VDC||Yes||No||No|
|230033||SunSaver SS-10-12V||12 VDC||No||No||No|
|230034||SunSaver SS-10L-12V||12 VDC||Yes||No||No|
|230035||SunSaver SS-10L-24V||24 VDC||Yes||No||No|
|230036||SunSaver SS-20L-12V||12 VDC||Yes||No||No|
|230037||SunSaver SS-20L-24V||24 VDC||Yes||No||No|
|230038||ProStar PS-15||12 / 24VDC||Yes||No||Yes|
|230039||ProStar PS-15M||12 / 24VDC||Yes||Yes||Yes|

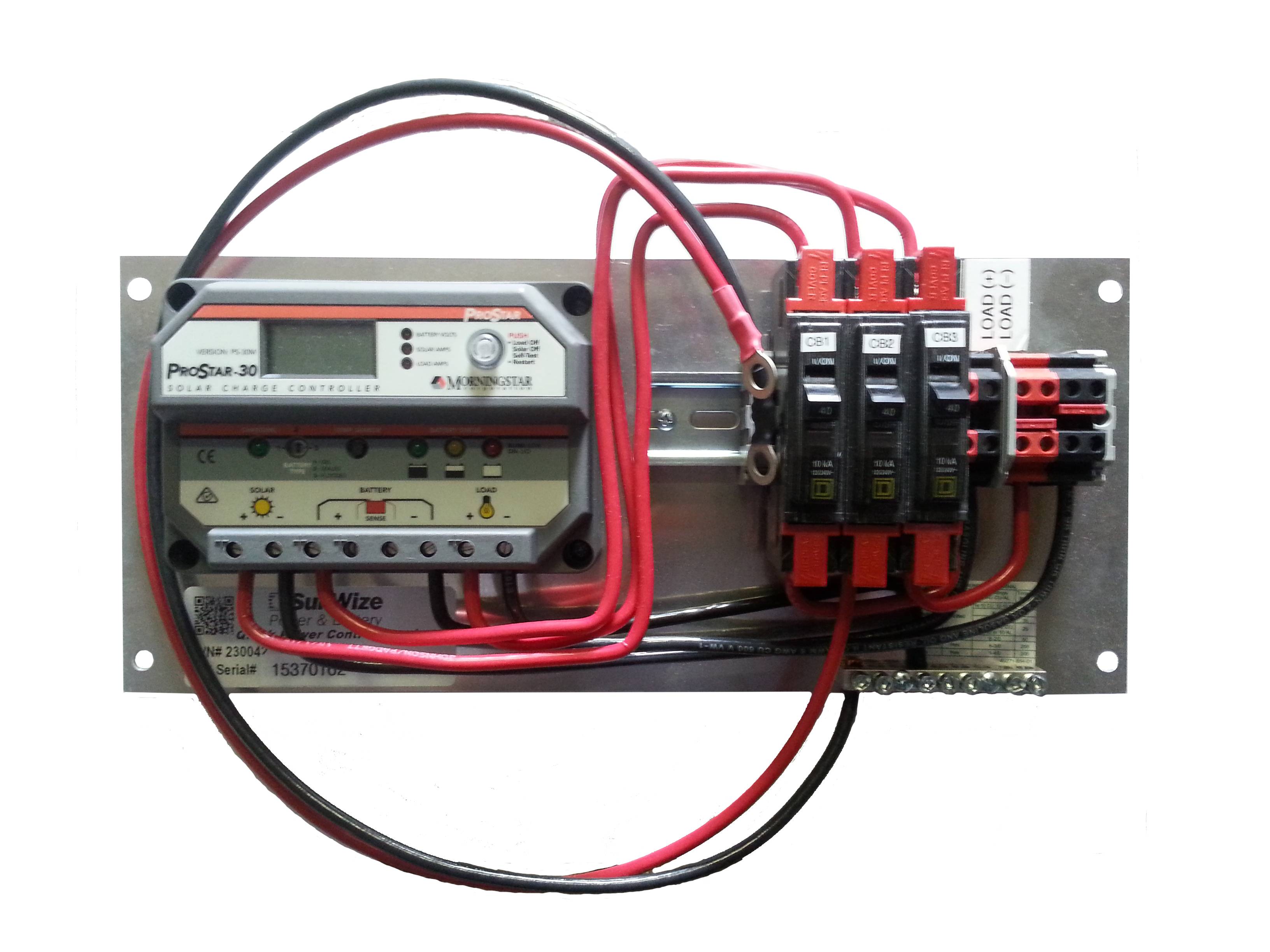

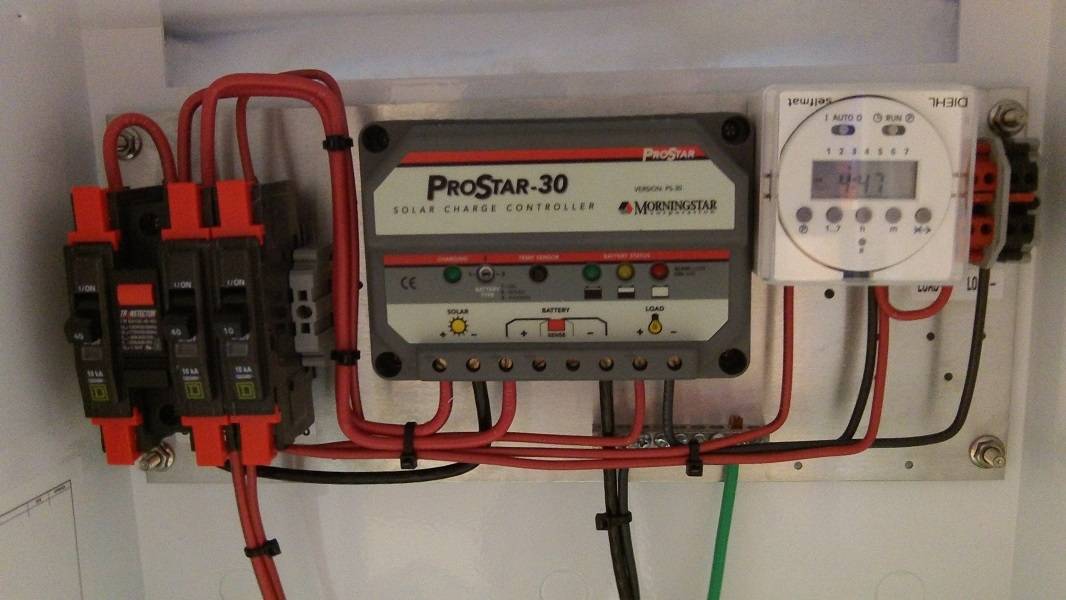

|230041||ProStar PS-30||12 / 24VDC||Yes||No||Yes|
|230042||ProStar PS-30M||12 / 24VDC||Yes||Yes||Yes|
|ProStar MPPT Models|

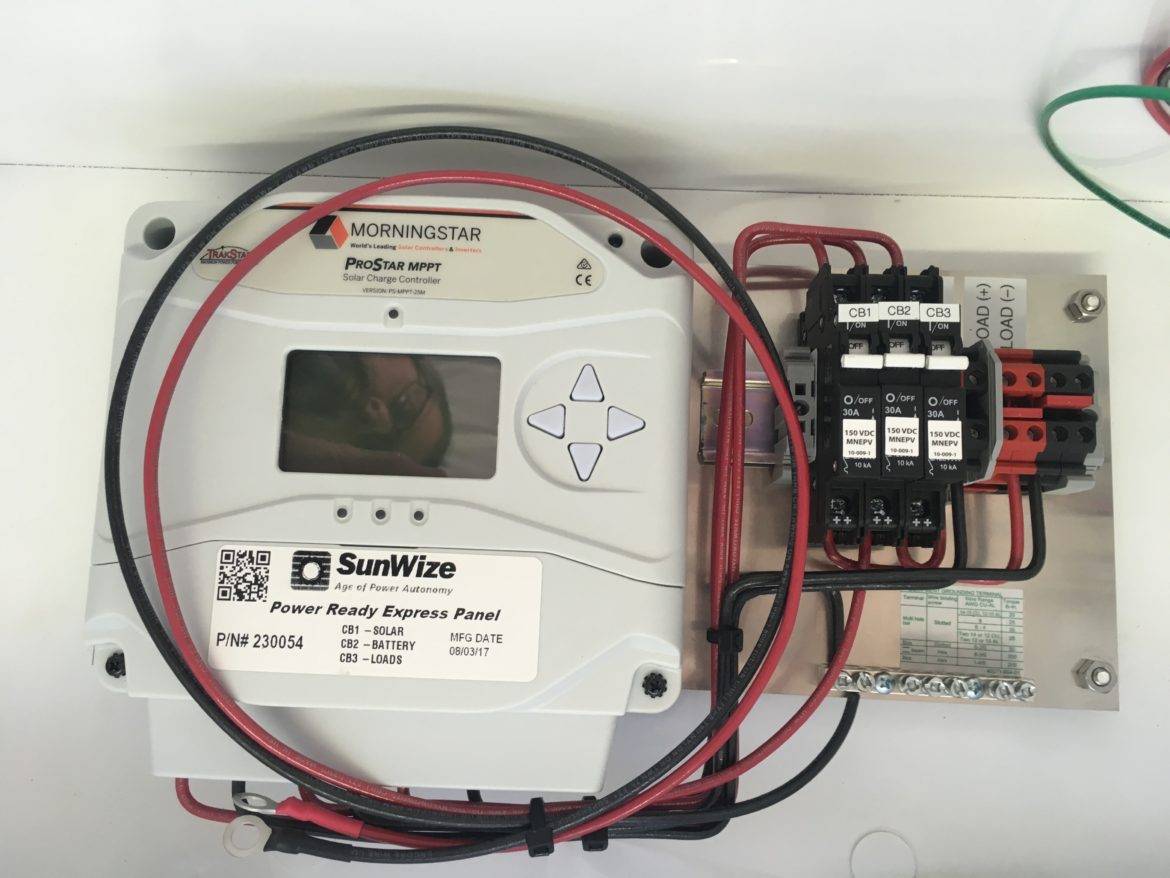

|230054||ProStar PS-MPPT-25M||12 / 24VDC||Yes||Yes||Yes|
|230055||ProStar PS-MPPT-40M||12 / 24VDC||Yes||Yes||Yes|
|230057||ProStar PS-MPPT-25||12 / 24VDC||Yes||No||Yes|
|230058||ProStar PS-MPPT-40||12 / 24VDC||Yes||No||Yes|
|230073||Dingo D2020N||12 / 24 / 48VDC||Yes||Yes||Yes|
|230075||ECO-N-10-T||12 / 24VDC||Yes||No||No|

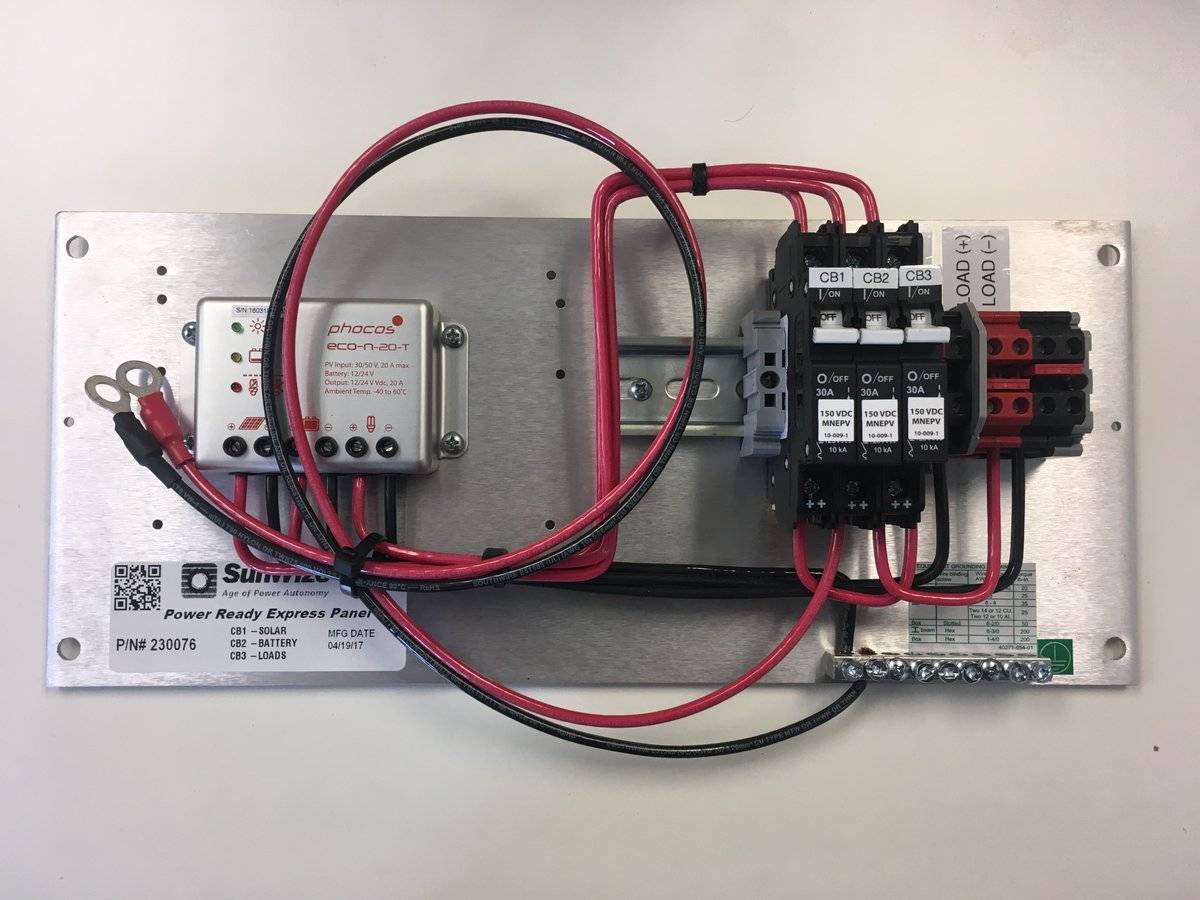

|230076||ECO-N-20-T||12 / 24VDC||Yes||No||No|
Power Ready Control Panels
SunWize Power Ready Control panels are customizable backplates for off-grid solar battery power systems. These control panels come without the solar charge controller by default, but they are customizable to include whatever power electronics are required for any job.
Control panels will fit up to (1) 60A charge controller and (1) 60A load controller, along with all switch gear, wire, surge suppression, terminal blocks, distribution blocks, DIN rail, etc.
Looking for complete power systems instead of control panels? Click here to view our complete line of Power Ready systems
|Part #||Model||Max Charger Controller Rating||Nominal Voltage||Breakers||Dimensions||Weight|
|016434||PRCP10||10A||12V / 24VDC||3 x 10A 150VDC||15" x 6.5"||4.6 lbs|
|016435||PRCP20||20A||12V / 24VDC||3 x 20A 150VDC||15" x 6.5"||4.6 lbs|
|016436||PRCP30||30A||12V / 24VDC||3 x 40A 150VDC||15" x 6.5"||6.3 lbs|
|016437||PRCP60||60A||12V / 24V / 48DC||4 x 60A 150VDC||17" x 17"||12.5 lbs|
Power Online Control Panels
SunWize Power Online Control panels are customizable backplates for AC & DC battery backup systems. These control panels come without the battery charger by default, but they are customizable to include whatever power electronics are required for any job.
Control panels will fit up to (1) 600W battery charger and (1) 60A load controller, along with all switch gear, wire, surge suppression, terminal blocks, distribution blocks, DIN rail, etc.
Looking for complete battery backup systems instead of control panels? Click here to view our complete line of Power Online systems
|Part #||Model||Standard Charger Rating||Nominal Voltage||Breakers||Dimensions||Weight|
|010105||POCP45||45W||12V / 24VDC||2 x 10A 150VDC||15" x 7.5"||4 lbs|
|016514||POCP60||60W||12V / 24V / 48DC|| 2 x 10A 120/240VAC|
1 x 10A 2 pole 120/240VAC
|15" x 7.5"||6 lbs|
|016515||POCP100||100W||12V / 24V / 48DC|| 2 x 10A 150VDC|
1 x 2A 150VDC
|15" x 7.5"||5.8 lbs|
|016519||POCP150||150W||12V / 24V / 48DC|| 2 x 10A 150VDC|
1 x 4A 150VDC
|15" x 7.5"||7.9 lbs|
|016524||POCP300||300W||12V / 24V / 48DC|| 2 x 10A 150VDC|
1 x 10A 120/240VAC
1 x 20A 125VDC
|24" x 16"||8.4 lbs|
|010102||POCP600||600W||12V / 24VDC|| 3 x 20A 120/240VAC|
1 x 40A 120/240VAC
|24" x 16"||8.4 lbs|

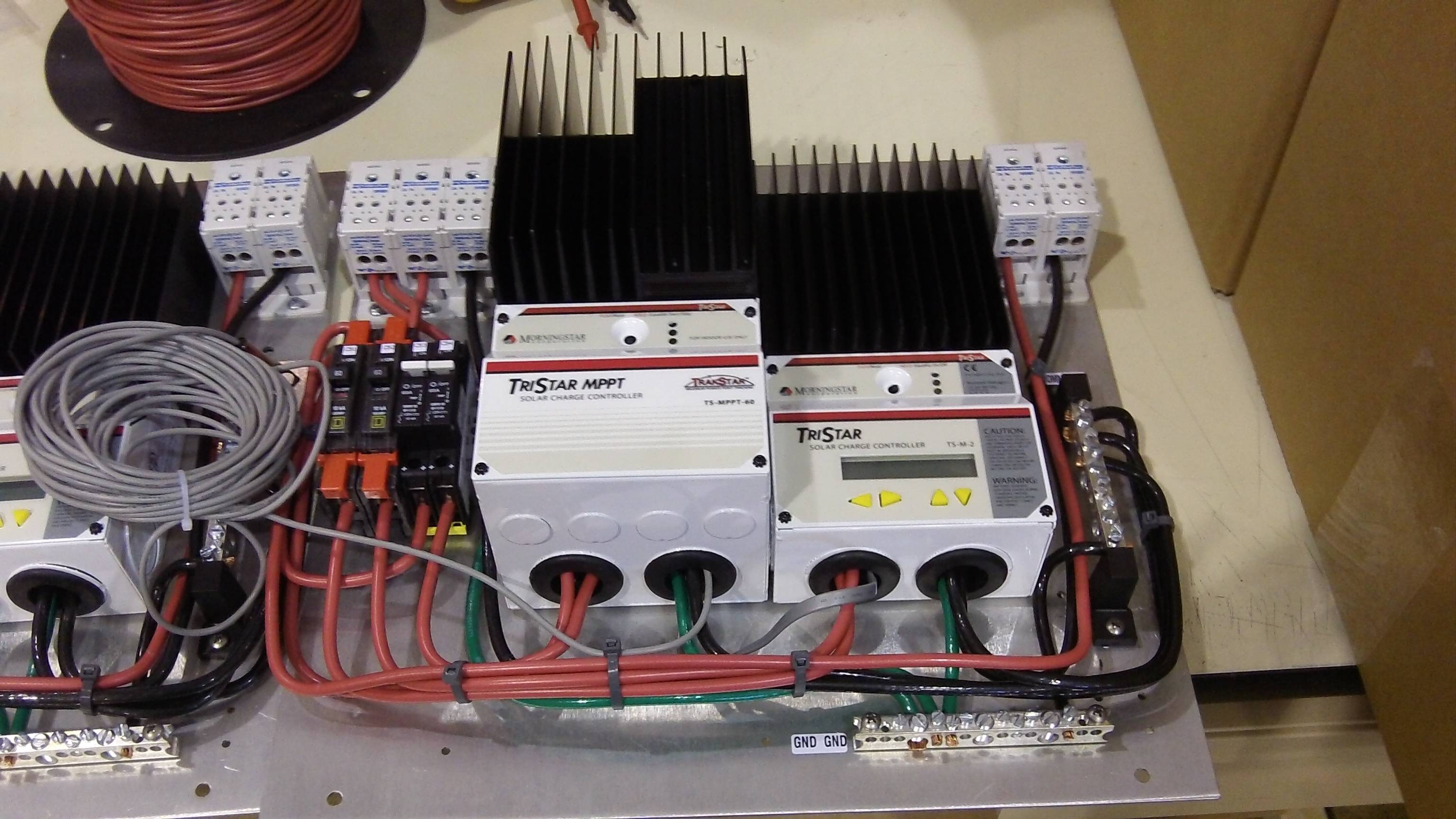

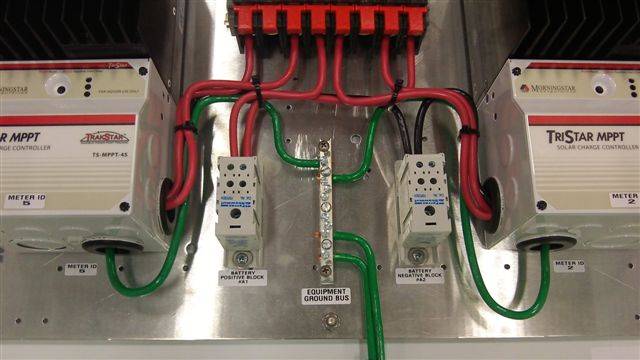

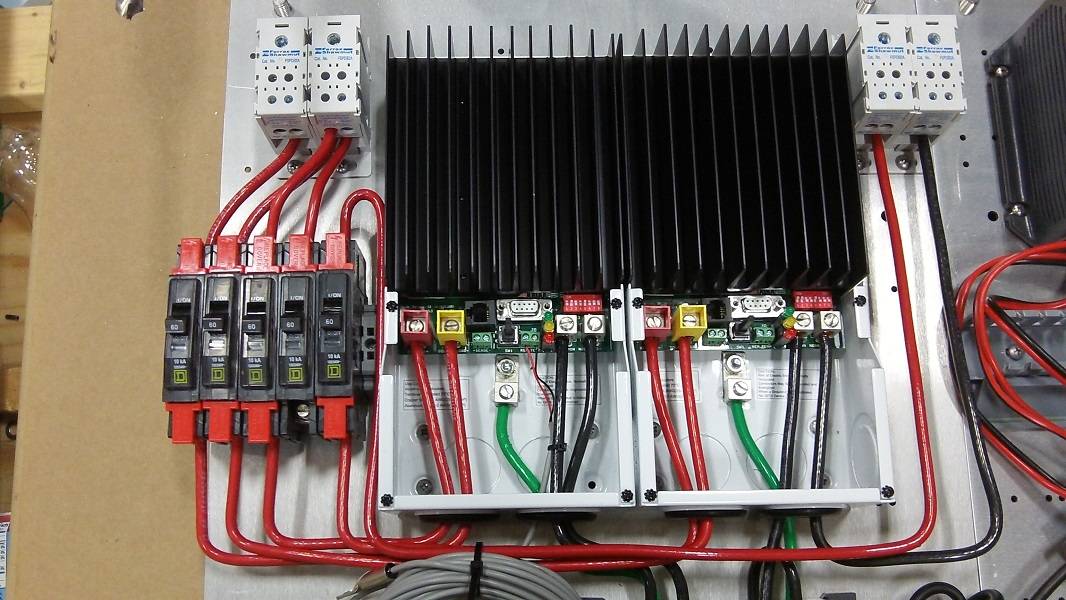

Custom Control Panels
SunWize Custom Control panels are customizable backplates for any application. Whether big or small, complex or simple, we’d love the opportunity to quote your custom control panel needs. We have the ability to source a wide variety of power electronics, power conditioning equipment, switchgear, wire types, and much more.
Contact us at (866) 827-6527 to see if we can help.
