SunWize M2-31 Enclosure

Premium M-series, NEMA3R, powder-coated, 2-battery, front-opening enclosure

M-Series

From: $798.98

Part Number: 260008

Features

• 20.8″H × 16.2″W × 15.4″D
• Pole or surface mounted
• Seven total 1/2” electrical knockouts
• Vented NEMA3R aluminum, hammered powder-coated design
• Hinged, pad-lockable door,  gasketed door

Not sure if this enclosure is the right one for you? Use our Battery Enclosure Selection Tool Here to be certain!

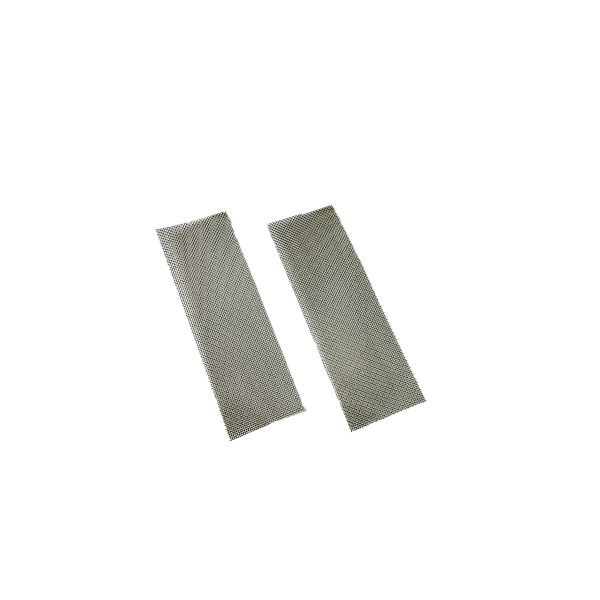

SunWize Louvre Screen Kit for M1-8D and M2-31

M1-8D and M2-31 Screen Kit

Out of stock

U-Bolt Kits for 2" to 10" Diameter Poles × 2

2"-10" SCH40 3/8"-16

Key Lock Latch Upgrade for M-Series

M-Series

SunWize 240015 Radio Shelf

15"W × 8"D × 0.125"H

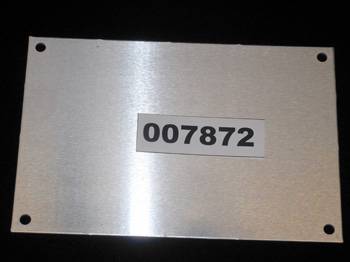

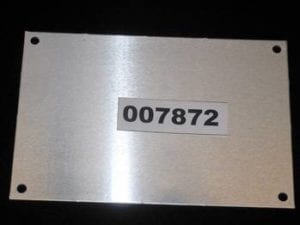

SunWize Enclosure Backplate Options

SunWize F-HC-RSP-2/4B Sideplate

9.5"W × 6.25"D × 0.08"H

PRE Panel Options

Product Back Ordered

SunWize M2-31 Enclosure

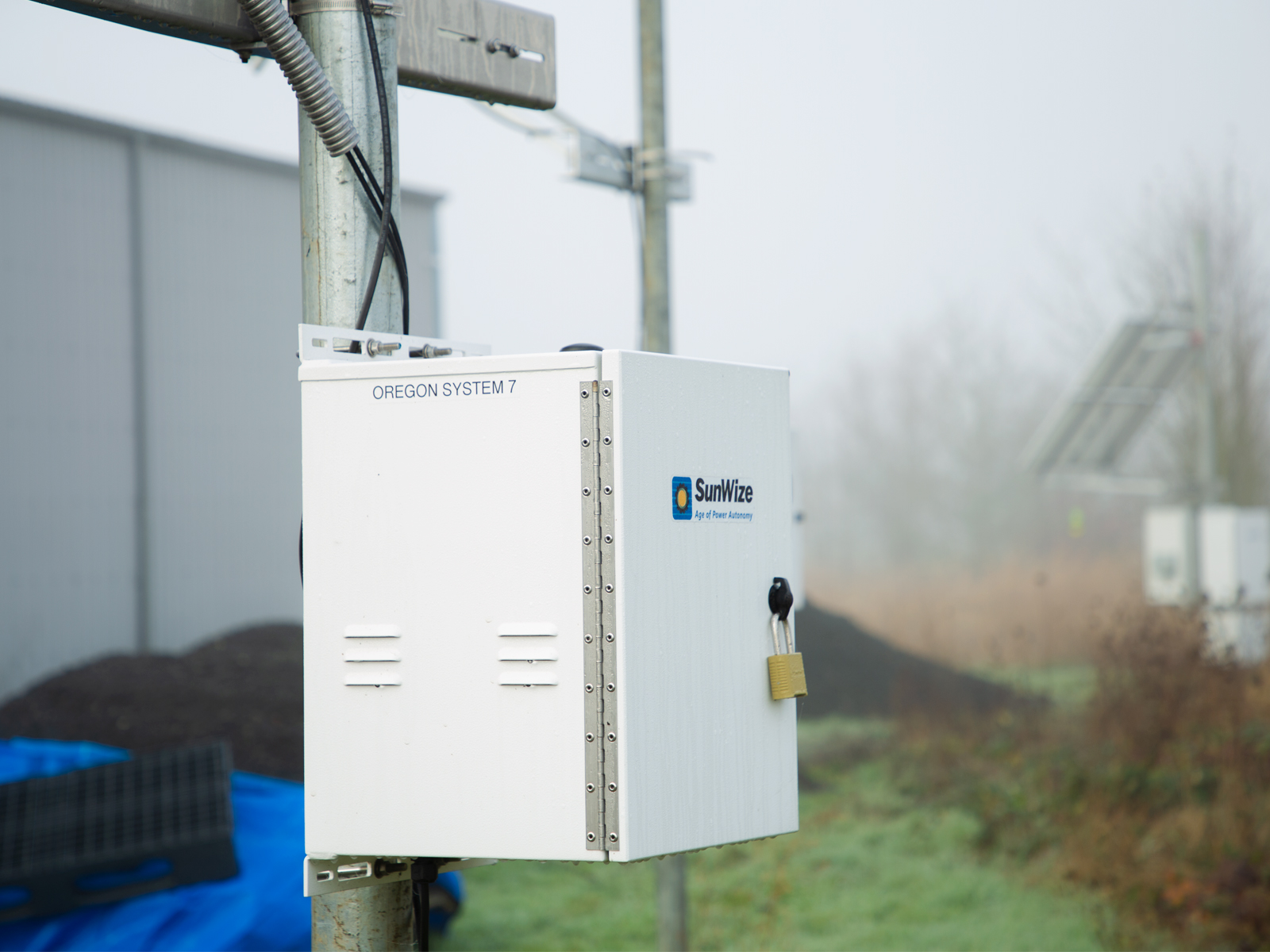

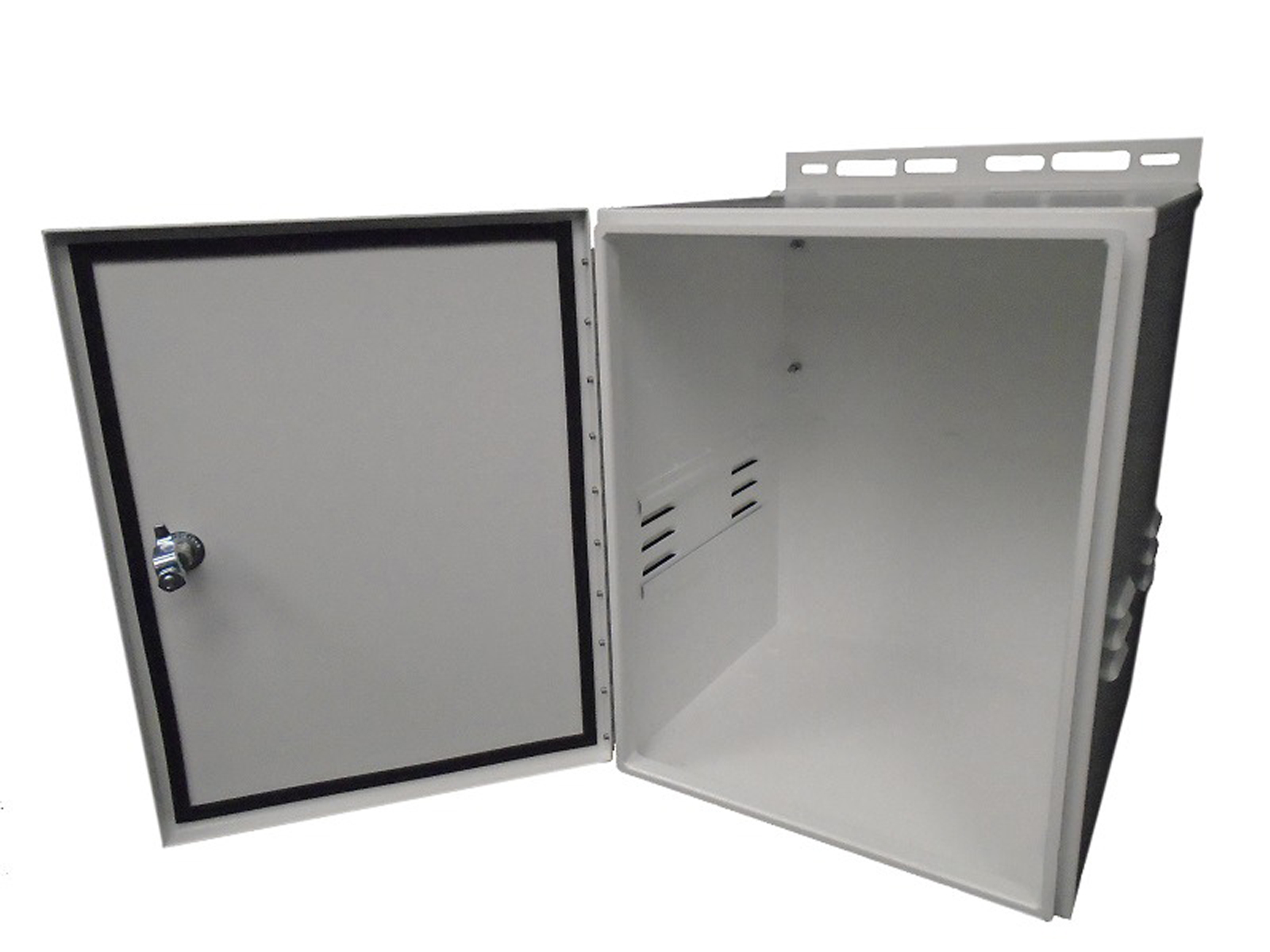

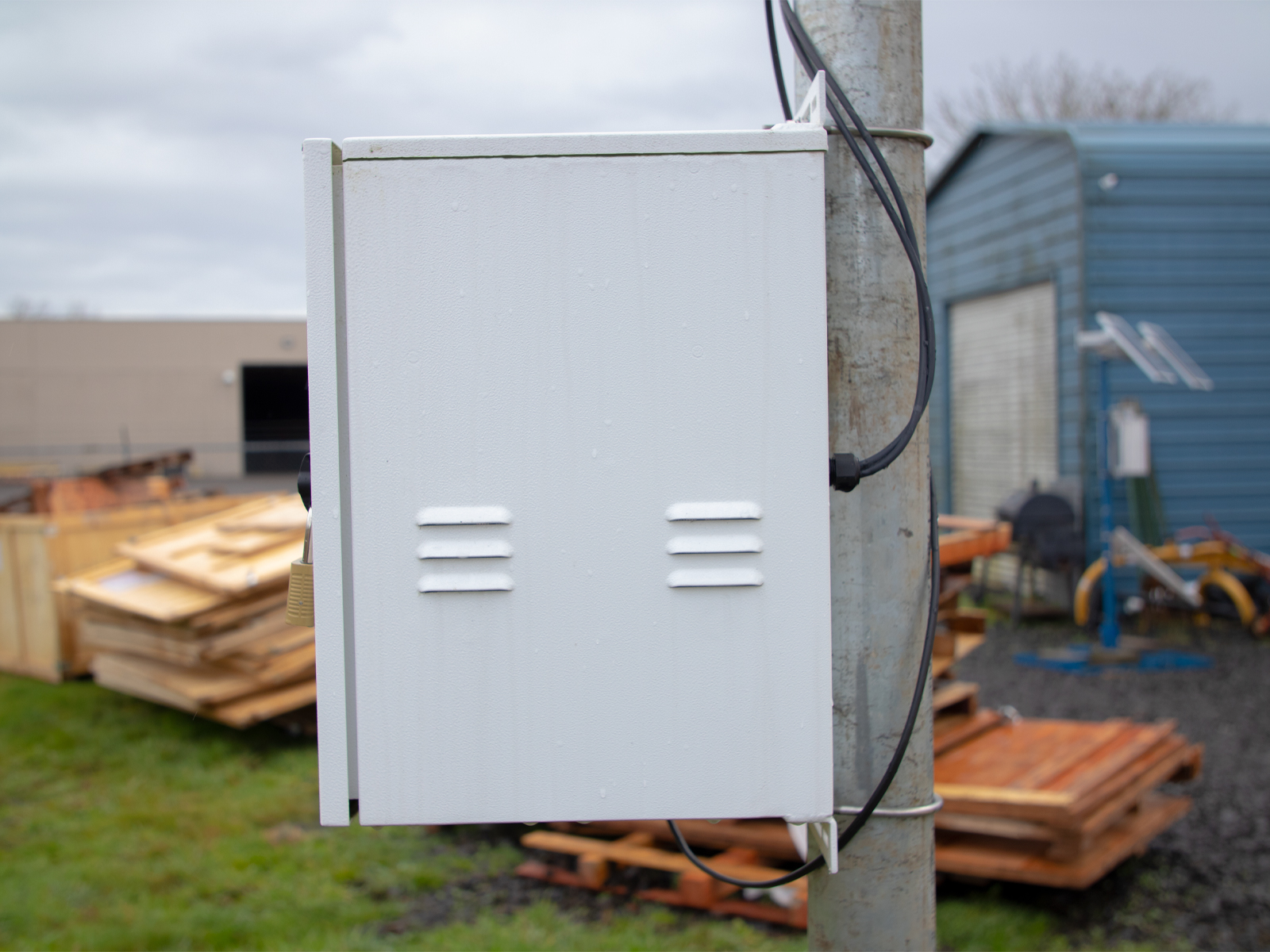

The SunWize Power & Battery M2-31 aluminum enclosure features a white powder-coated finish and a NEMA3R rating for indoor or outdoor use. The M2-31 enclosure can mount on a flat vertical surface or on a variety of pole sizes. It also features a padlockable wing latch for added security. The M2-31 enclosure can hold a variety of battery sizes with plenty of space left over for controls equipment on its back and sideplates. The rear-mounted backplate measures 15” x 6.5” and the side mounted backplate measures 8.75” x 3.75”. There are seven 1/2” knockouts available, three on the back and four on the bottom, for wiring purposes.

More about SunWize Power & Battery enclosures

Sunwize Power & Battery Battery Enclosures are available in various sizes and configurations for housing batteries and support equipment, engineered specifically for the PV industry but suitable in a wide variety of applications.

Most of our enclosures are designed to NEMA3R and rated for outdoor use. White powder coating and quality manufacturing ensure a robust enclosure that will survive even the harshest conditions. Sunwize Power & Battery also offers custom enclosures to meet any specification.

All Enclosures include rainproof design, electrical knockout, and ventilation.

  • M Series Enclosures are pole-mounted enclosures featuring new battery storage capabilities and a hammered powder coat finish.
  • F Series Enclosures are cost-effective solutions for housing one to four batteries with supporting equipment.
  • T Series Enclosures are ground mounted aluminum or steel chest enclosures, either white powder-coated or mill-finished, and feature hinged, pad-lockable lids.
  • UPS Series Enclosures are targeted for battery backup system applications with two separate enclosures; one for a system’s batteries and one for the electronics.
  • E/C Series Enclosures are Aluminum enclosures feature removable covers with stainless steel screws.
  • WF Series Enclosures accommodate larger back panels for more support equipment, also designed for one to four batteries.
  • Large Power Electronics and Battery Enclosures are front-opening & large enough to accommodate your equipment.

Custom Designed Enclosures are made special order specifically for our customers’ applications, we can design and build a variety of sizes and types of enclosure. Chat with us now to get your custom enclosure started!
