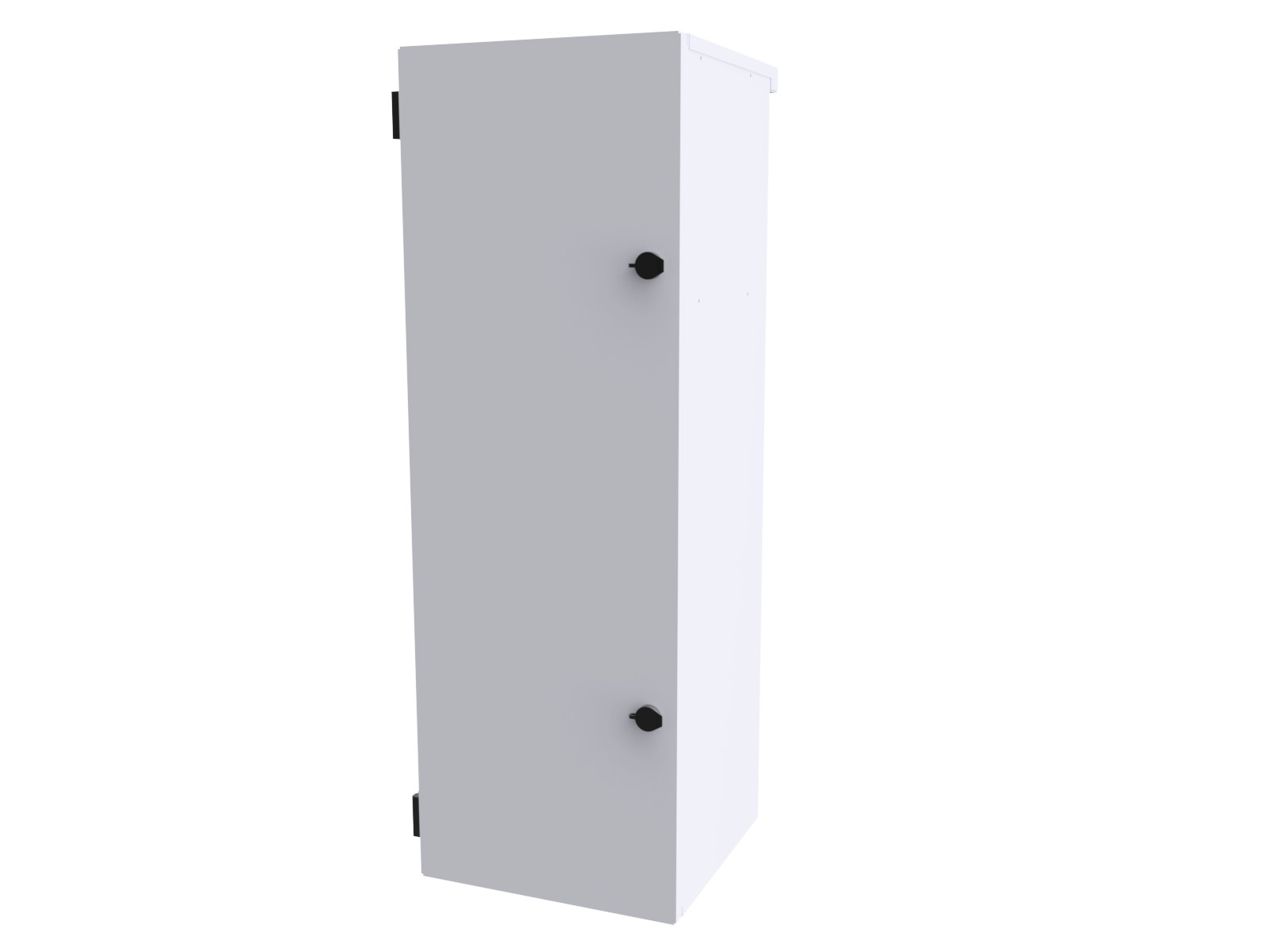

SunWize F4-Tall Enclosure

F4-Tall – Premium, NEMA3R, powder-coated, 4-battery, front-opening enclosure

F-Series

From: $1,394.54

Part Number: 260003

Features

• 47″H × 16″W × 14.4″D
• Pole or surface mounted
• Three 1/2” electrical knockouts
• NEMA3R aluminum, smooth powder-coated design
• Hinged, key-lockable doors to protect from theft
• Includes dust filters and a gasketed door
• Truck Freight Item

Not sure if this enclosure is the right one for you? Use our Battery Enclosure Selection Tool Here to be certain!

SunWize 004387 Economy Mounting Bracket

2"W × 13"D × 2"H

SunWize 004386 Premium Mounting Bracket

2"W × 13"D × 2"H

U-Bolt Kits for 2" to 6" Diameter Poles × 2

2"-6" SCH40 3/8"-16

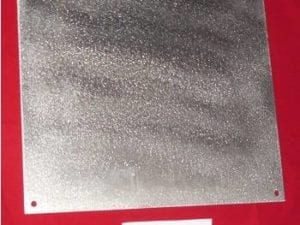

SunWize 250004 Backplate

15.375"W × 13.25"H× 0.08"D

SunWize 250005 Sideplate

9.5"W × 13.25"D × 0.08"H

SunWize 240015 Radio Shelf

15"W × 8"D × 0.125"H

PRE Panel Options

SunWize 004373 Pad Mounting Brackets

1.6"W × 20"D × 1.6"H

Product in Stock

SunWize F4-Tall Enclosure

The SunWize F4-Tall series battery enclosure is a cost-effective solution for housing four batteries. For instance, these can be “oversized” group 31 batteries. Since this is a pole-mounting enclosure, it’s a cost-effective choice. Because it allows additional supporting electronics, so it is an optimal choice for complicated projects. This allows for power electronic devices, such as solar charge controllers, inverters, battery chargers, and more. This NEMA3R rated, white powder-coated aluminum enclosure has hinged, key-lockable doors. And it also includes dust covers on locks and a gasketed door. The F4-Tall vents provide passive cooling ventilation. Therefore, the F4-Tall is ideal for industrial and remote solar applications.

The rear-mounted backplate measures 15.375” x 13.25” and the side-mounted backplate measures 9.5” x 13.25”. There are three 1/2” knockouts available on the back for wiring purposes. The sideplates can be used to mount additional small electronics. For instance, PoE devices, DC-DC converters, or additional breakers can be used here.

Not sure if this enclosure is the right one for you? Use our Battery Enclosure Selection Tool Here. Simply enter your battery bank details on our form drop-downs, like which batteries you’re using, battery quantity, and whether you need a Pole-Mounting or Ground Mounted solution, and we’ll send you to the correct enclosure on our webstore!

You can read more about specific NEMA rating types here.

More about SunWize Power & Battery enclosures

Sunwize Power & Battery Battery Enclosures are available in various sizes and configurations for housing batteries and support equipment, engineered specifically for the PV industry but suitable in a wide variety of applications.

Most of our enclosures are designed to NEMA3R and rated for outdoor use. White powder coating and quality manufacturing ensure a robust enclosure that will survive even the harshest conditions. Sunwize Power & Battery also offers custom enclosures to meet any specification.

All Enclosures include rainproof design, electrical knockout, and ventilation.

  • M Series Enclosures are pole-mounted enclosures featuring new battery storage capabilities and a hammered powder coat finish.
  • F Series Enclosures are cost-effective solutions for housing one to four batteries with supporting equipment.
  • T Series Enclosures are ground mounted aluminum or steel chest enclosures, either white powder-coated or mill-finished, and feature hinged, pad-lockable lids.
  • UPS Series Enclosures are targeted for battery backup system applications with two separate enclosures; one for a system’s batteries and one for the electronics.
  • E/C Series Enclosures are Aluminum enclosures feature removable covers with stainless steel screws.
  • WF Series Enclosures accommodate larger back panels for more support equipment, also designed for one to four batteries.
  • Large Power Electronics and Battery Enclosures are front-opening & large enough to accommodate your equipment.
  • Custom Designed Enclosures are made special order specifically for our customers’ applications, we can design and build a variety of sizes and types of enclosure. Chat with us now to get your custom enclosure started!
