Power Ready Express (“PRE”) Systems

SunWize Power and Battery has developed the Power Ready Express line to provide standard system configurations through use of our pre-wired control panels. We are able to stock the standard control panels to reduce lead time, reduce custom engineering and provide you a robust system with reliable components for a long lived system.

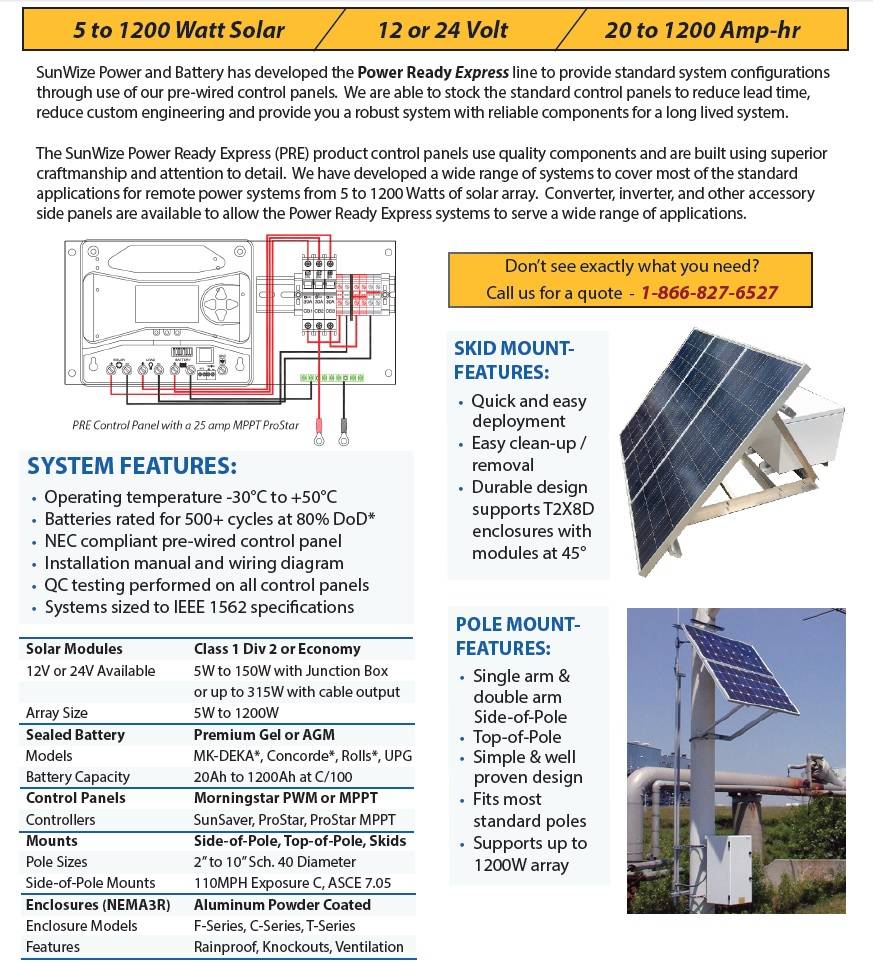

SunWize PRE Systems are complete off-grid solar battery kits that contain everything you need to run a stand-alone DC load using solar energy. Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

The SunWize Power Ready Express (PRE) product line uses the same high quality components as our customized Power Ready solutions. We have developed a wide range of systems to cover most of the standard applications for remote power systems from 10 to 1200 Watts of solar array. Don’t see exactly what you need? We can customize any system! (866) 827-6527

POWER READY EXPRESS SYSTEMS USUALLY SHIP IN 1-2 WEEKS OR LESS

There are (4) easy ways to order PRE systems from SunWize
  1. Call us at 866-827-6527 for a quote!
  2. Use our new PRE Design Tool!
  3. Submit your project info with our System Sizing Form
  4. Use SunWize Connect to shop for Power Ready systems now!
Features include:

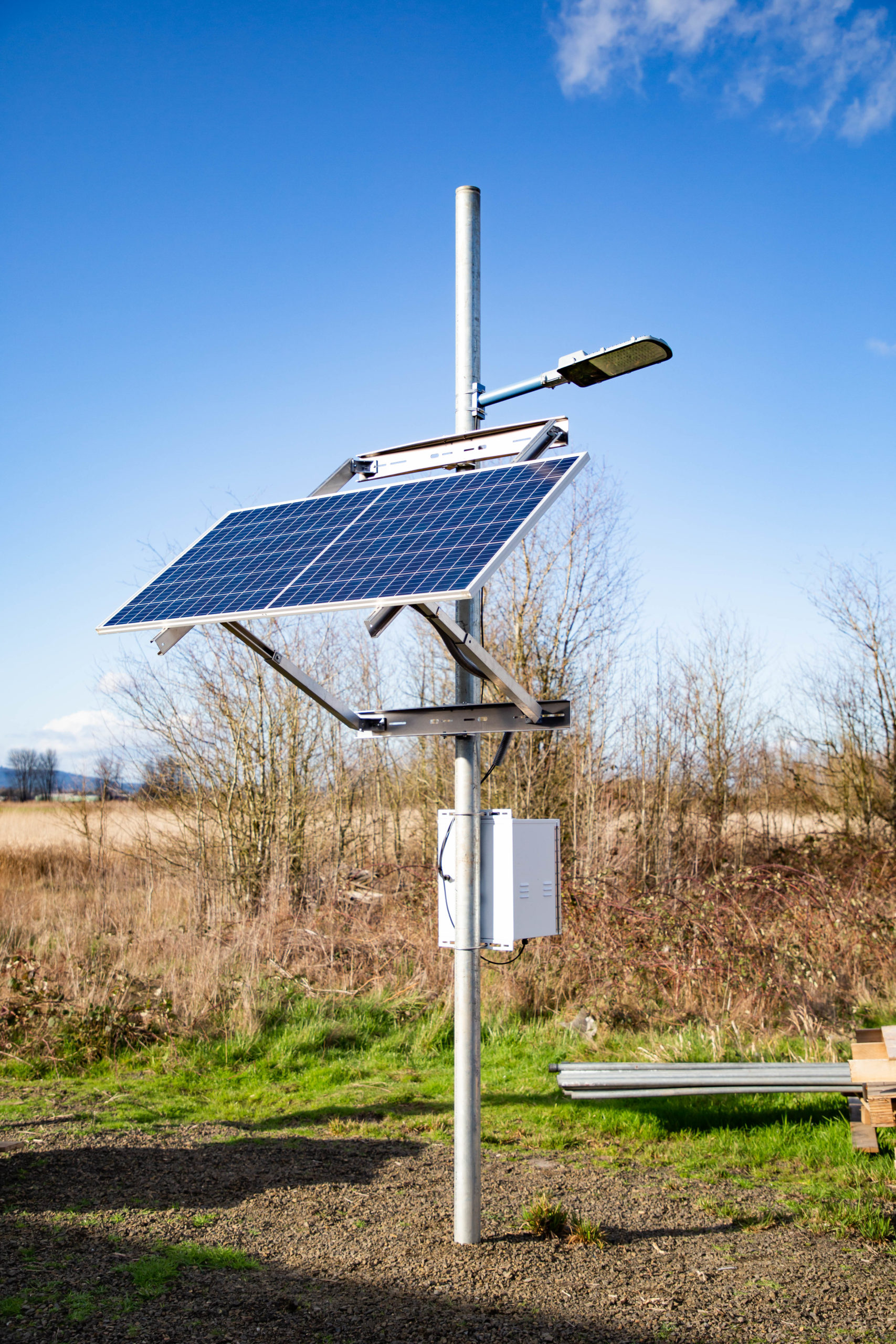

  • Solar arrays use side-of-pole, top-of-pole, or skid mounts
  • NEMA 3R, white powder-coated, outdoor aluminum enclosures
  • 12V deep cycle Gel batteries
  • Pre-wired solar control panel
  • 15 ft tray cable output
  • Installation manual and wiring diagram
  • Factory QC testing performed on all systems

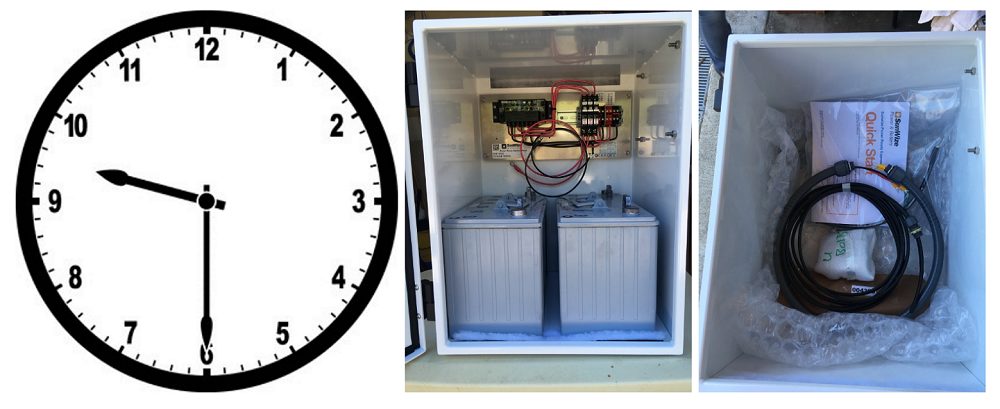

Order Time: 9:30AM

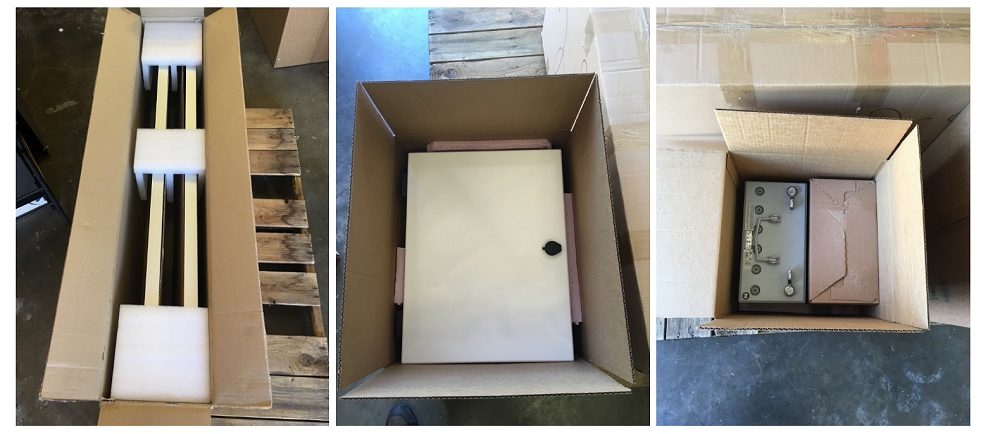

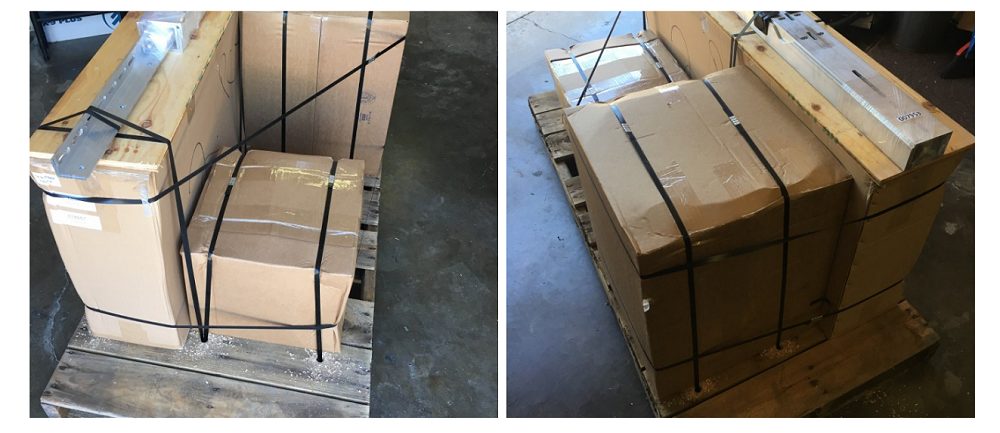

Entire system with mounting brackets secured to pallet

Packed and Ready for pickup at 12:30 PM

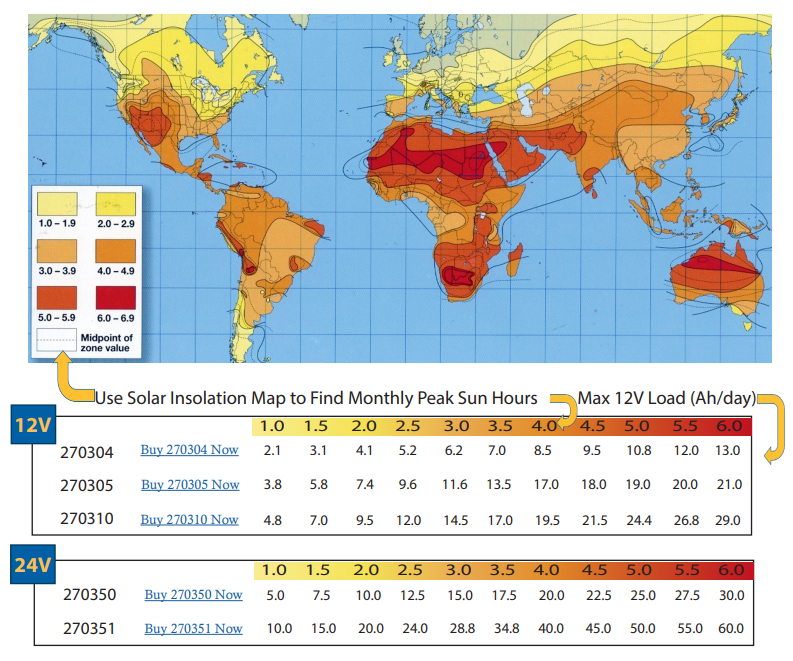

Power Ready Express Design Guides!

Use the project site’s solar resource zone from the map and then match it to your system load! Use the table to find correct system part# and then call or order on SunWize Connect!
The insolation map, showing the peak daily sun hours for the worst case month, is used to design a system for your equipment location. The Power Ready Express line is built for reliable operation in the worst case weather conditions. Our systems are designed for a Loss of Load Probability (LOLP) of less than 0.1% for the worst month when installed properly per the load specifications for each insolation zone shown below. Click Here to download PDF.

If you need a system cuztomized to your specifications, or have any questions, call us for a quote at (866) 827-6527.


12V PRE Design Guide Table

The insolation map, showing the peak daily sun hours for the worst case month, is used to design a system for your equipment location. The Power Ready Express line is built for reliable operation in the worst case weather conditions. Our systems are designed for a Loss of Load Probability (LOLP) of less than 0.1% for the worst month when installed properly per the load specifications for each insolation zone shown below. Click Here to download PDF.

If you need a system cuztomized to your specifications, or have any questions, call us for a quote at (866) 827-6527.


24V PRE Design Guide Table

New! PRE I/O Accessory Panels

230082 – SunWize ® PRE Accessory Panels

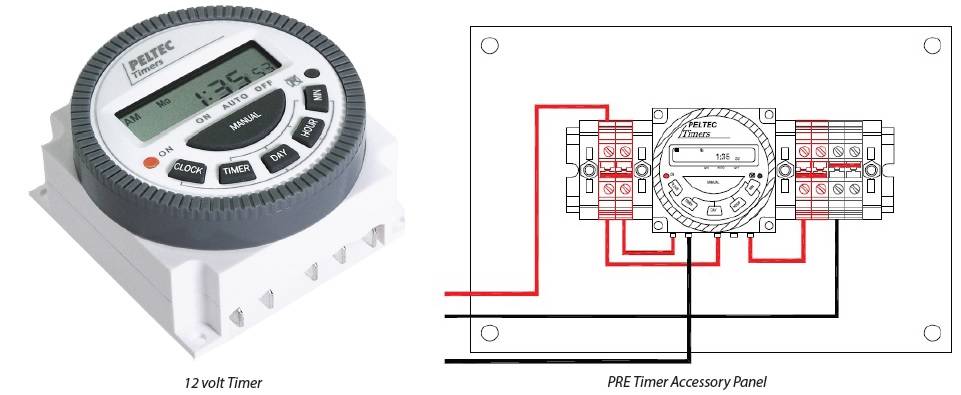

SunWize Power Ready Express accessory panel with pre-wired Peltec Timer. Easily integrates directly with any existing Power Ready Express Control Panel. Fully programmable timer featuring 24-hour, 7-day schedule and (3) load connections. Need something customized? Call us!

The new Power Ready Express accessory panels give versatility to all of our standard PRE systems.

PRE Timer Panel
230082 – Data Sheet
230082 – Buy Now

#230082

TECHNICAL SPECIFICATIONS
GENERAL FEATURES
Digital Display
1 year Warranty
24-hour, 7-day programming
Easily wires directly into any existing PRE panel
The timer accessory side plate features a Peltec fully programmable, 24-hour, 7-day, digital timer. The timer has a digital display that displays the current status of the timer and allows easy adjustment of the timer’s programming.

230084 – SunWize ® PRE Accessory Panels

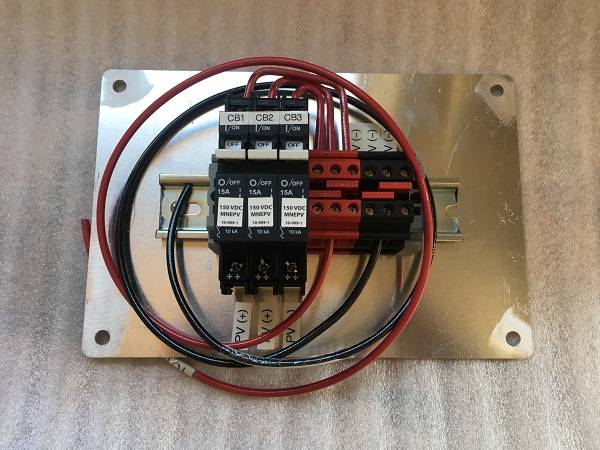

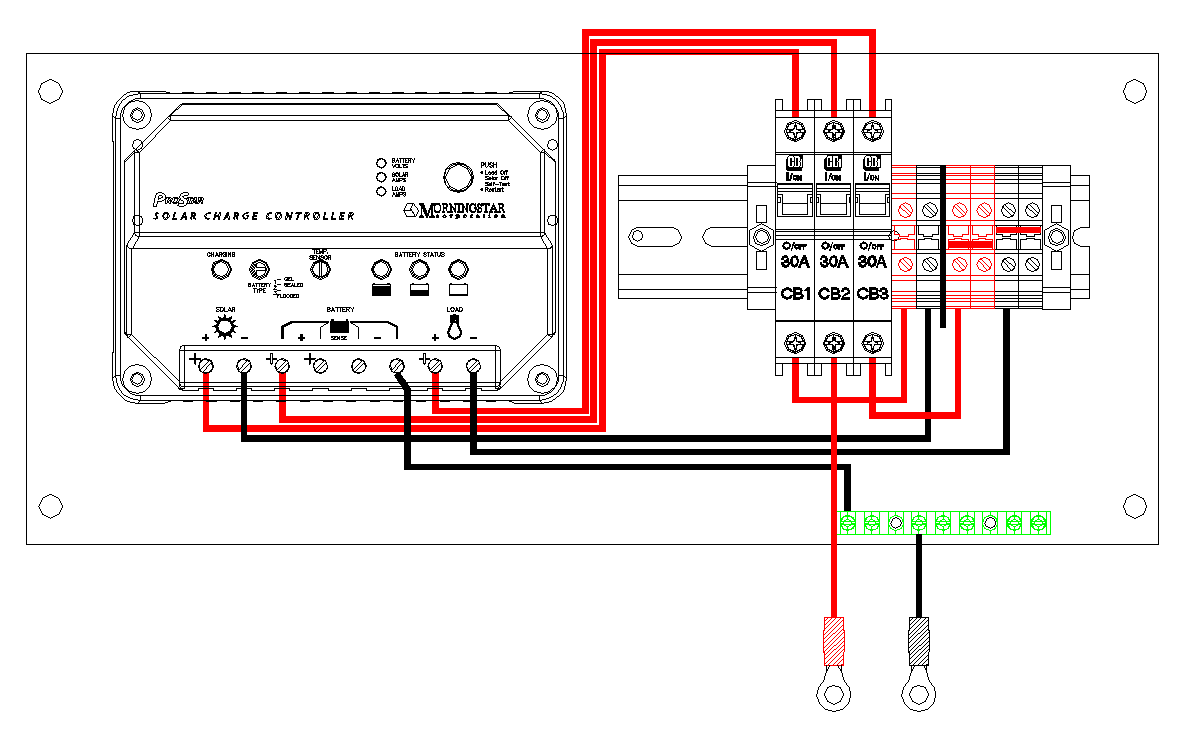

The 3 pole combiner accessory side plate wires into an existing PRE Control Panel’s PV input and allows three separate strings of solar modules to provide power to a PRE system. This allows a system to harvest more power increasing reliabilty and decreasing the recharge time of the batteries. Need something customized? Call us!

The new Power Ready Express accessory panels give versatility to all of our standard PRE systems.

PRE Accessory Panel
230084 – Data Sheet
230084 – Buy Now

#230084

TECHNICAL SPECIFICATIONS
GENERAL FEATURES
(3x) 15A, 150VDC rated circuit breakers for array strings
1 year Warranty
Pre-wired and fully assembled
Easily wires directly into any existing PRE panel
The 3 pole combiner accessory side plate wires into an existing PRE Control Panel’s PV input and allows three separate strings of solar modules to provide power to a PRE system. This allows a system to harvest more power increasing reliability and decreasing the recharge time of the batteries.

230077 – SunWize ® PRE Accessory Panel

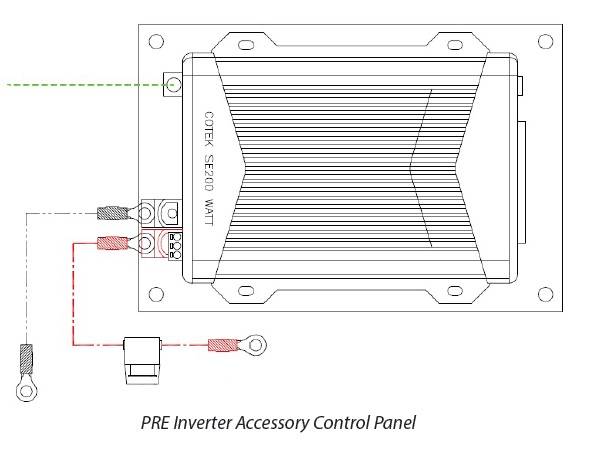

The inverter control panel features a Cotek DC:AC inverter that hooks directly to the user’s battery bank. The inverter outputs 200 watts of pure sine wave AC power at 50 or 60 Hz. Need something customized? Call us!

The new Power Ready Express accessory panels give versatility to all of our standard PRE systems.

PRE Accessory Panel
230077 – Data Sheet
230077 – Buy Now

#230077

ModelSE200-112
TECHNICAL SPECIFICATIONS
GENERAL FEATURES
Input Voltage12VDC
Output Voltage120VDC
Frequency50 / 60 Hz
Rated Continuous Power200VA
Surge Power Output (3 Sec.)250VA
1 year Warranty

Pre-wired and fully assembled
Easily wires directly into any existing PRE panel
The inverter control panel features a Cotek DC:AC inverter that hooks directly to the user’s battery bank. The inverter
outputs 200 watts of pure sine wave AC power at 50 or 60 Hz.

230078 – SunWize ® PRE Accessory Panel

The inverter control panel features a Cotek DC:AC inverter that hooks directly to the user’s battery bank. The inverter outputs 200 watts of pure sine wave AC power at 50 or 60 Hz. Need something customized? Call us!

The new Power Ready Express accessory panels give versatility to all of our standard PRE systems.

PRE Accessory Panel
230078 – Data Sheet
230078 – Buy Now

#230078

ModelSE200-124
TECHNICAL SPECIFICATIONS
GENERAL FEATURES
Input Voltage24VDC
Output Voltage120VDC
Frequency50 / 60 Hz
Rated Continuous Power200VA
Surge Power Output (3 Sec.)250VA
1 year Warranty
Pre-wired and fully assembled
Easily wires directly into any existing PRE panel
The inverter control panel features a Cotek DC:AC inverter that hooks directly to the user’s battery bank. The inverter
outputs 200 watts of pure sine wave AC power at 50 or 60 Hz.

230074 – SunWize ® PRE Accessory Panel

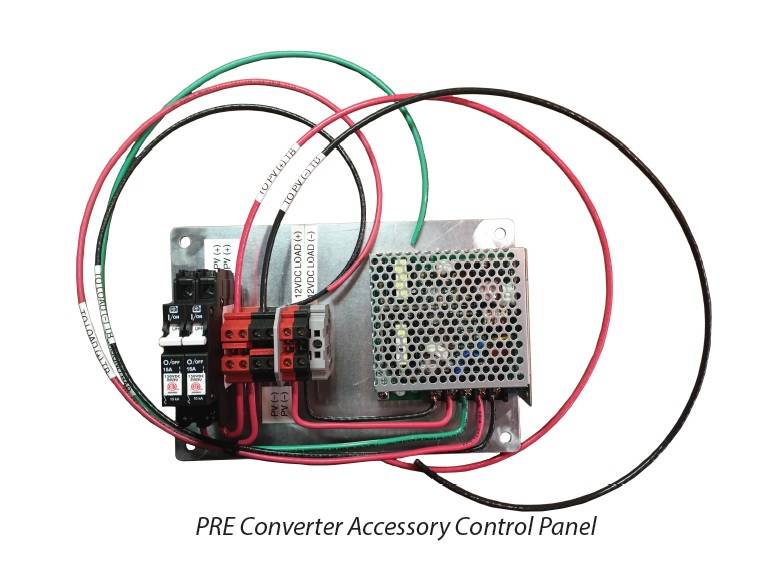

The converter control panel features a Mean Well DC:DC converter that plugs directly into a PRE Control Panel’s output terminals. The control panel also has a combiner with two (2) 15A breakers that allows the user to plug two strings of PV modules into a single PRE control panel.
PRE Need something customized? Call us!

The new Power Ready Express accessory panels give versatility to all of our standard PRE systems.

PRE Accessory Panel
230074 – Data Sheet
230074 – Buy Now

#230074

ModelSD-25B-12
TECHNICAL SPECIFICATIONS
GENERAL FEATURES
24VDC Input Voltage19-36VDC
Efficiency75%
Output Voltage12VDC
Rated Continuous Power25W
Operating Temps-10°C to +60°C
1 year Warranty
#colspan#
Pre-wired and fully assembled
Easily wires directly into any existing PRE panel
The converter control panel features a Mean Well DC:DC converter that plugs directly into a PRE Control Panel’s output terminals. The control panel also has a combiner with two (2) 15A breakers that allows the user to plug two strings of PV modules into a single PRE control panel.

230079 – SunWize ® PRE Accessory Panel

The converter control panel features a Mean Well DC:DC converter that plugs directly into a PRE Control Panel’s output terminals. The control panel also has a combiner with two (2) 15A breakers that allows the user to plug two strings of PV modules into a single PRE control panel.
PRE Need something customized? Call us!

The new Power Ready Express accessory panels give versatility to all of our standard PRE systems.

PRE Accessory Panel
230079 – Data Sheet
230079 – Buy Now

#230079

ModelSD-25A-24
TECHNICAL SPECIFICATIONS
GENERAL FEATURES
12VDC Input Voltage9.2-18VDC
Efficiency75%
Output Voltage24VDC
Rated Continuous Power25W
Operating Temps-10°C to +60°C
1 year Warranty
#colspan#
Pre-wired and fully assembled
Easily wires directly into any existing PRE panel
The converter control panel features a Mean Well DC:DC converter that plugs directly into a PRE Control Panel’s output terminals. The control panel also has a combiner with two (2) 15A breakers that allows the user to plug two strings of PV modules into a single PRE control panel.

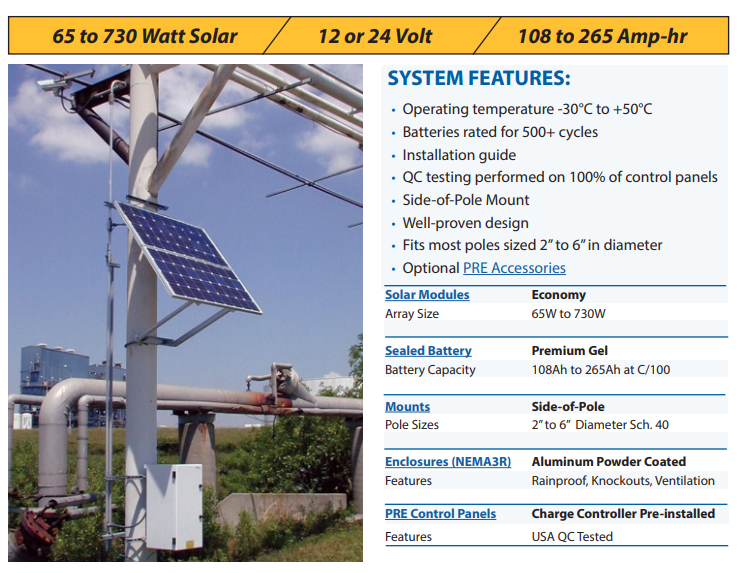

12V Pole Mounted Systems

270301 – SunWize ® Power Ready Express

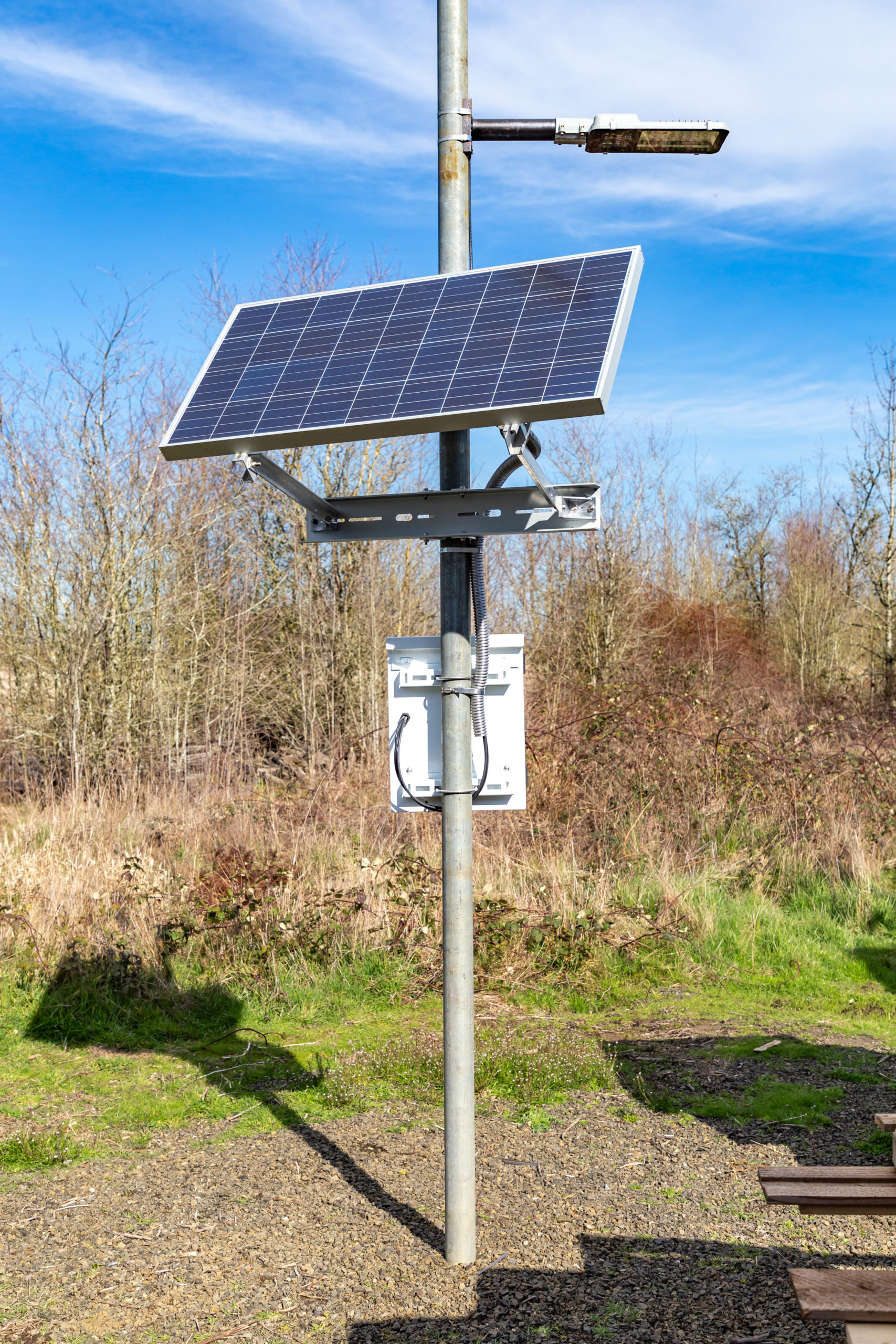

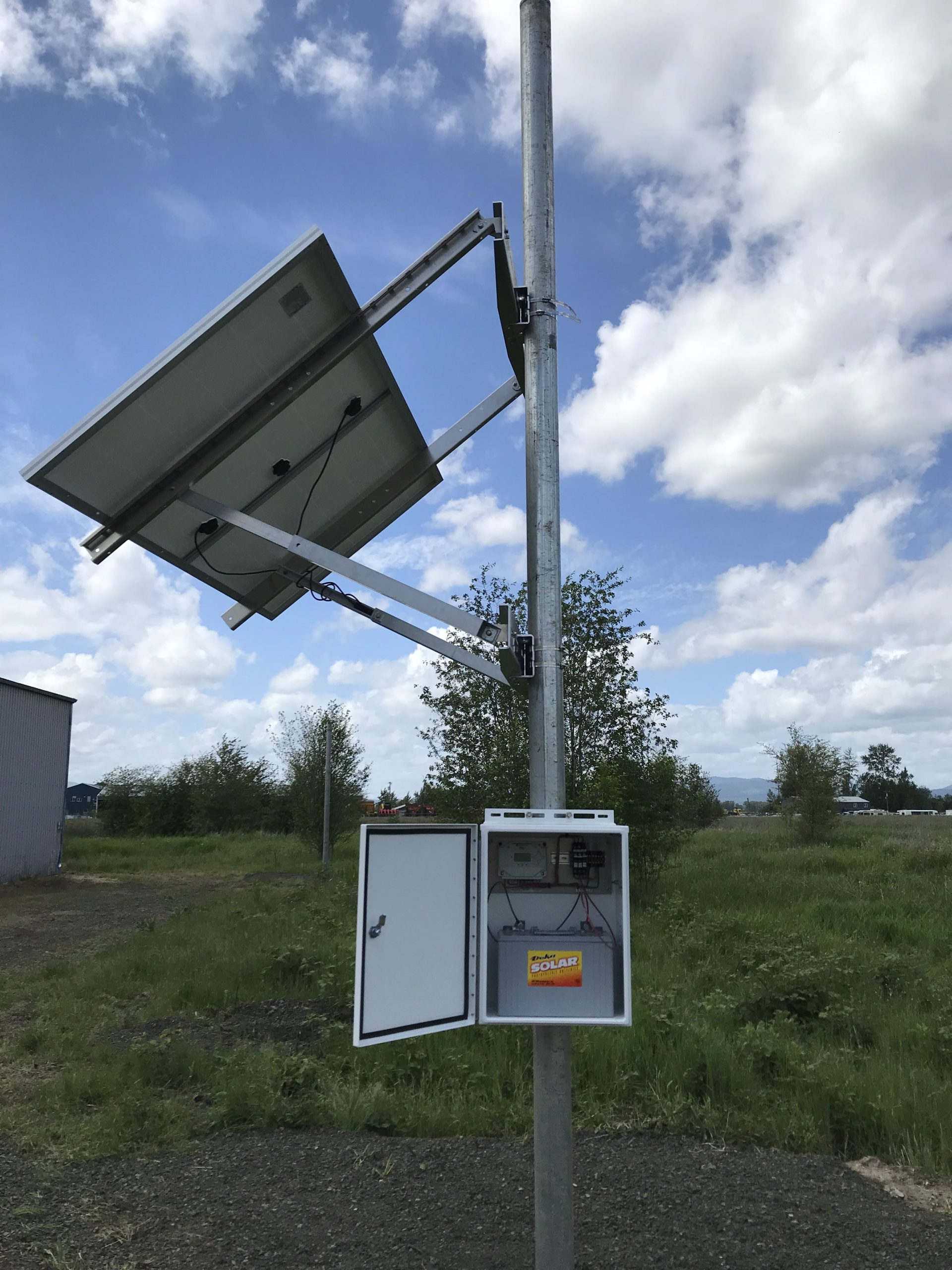

12V SunWize Power Ready Express side-of-pole system with front opening C1-125 enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

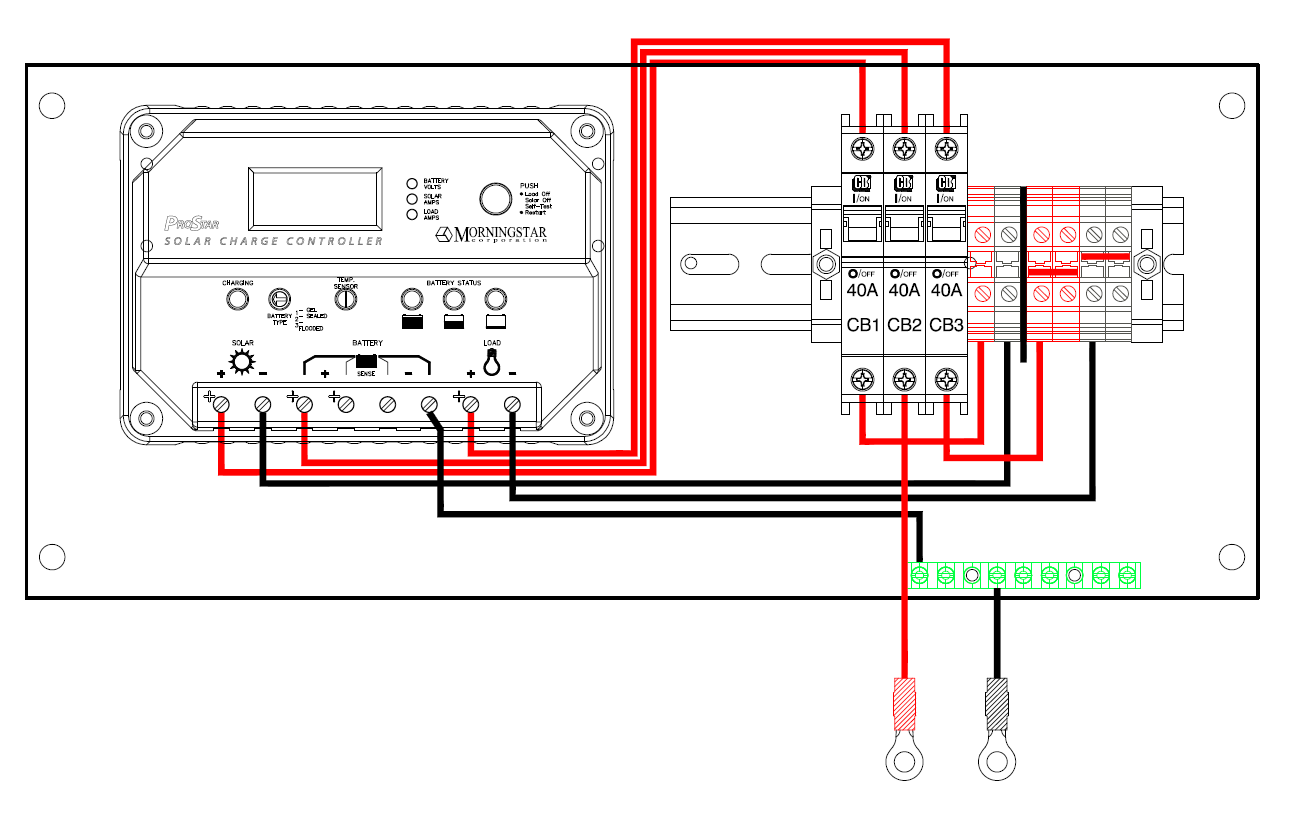

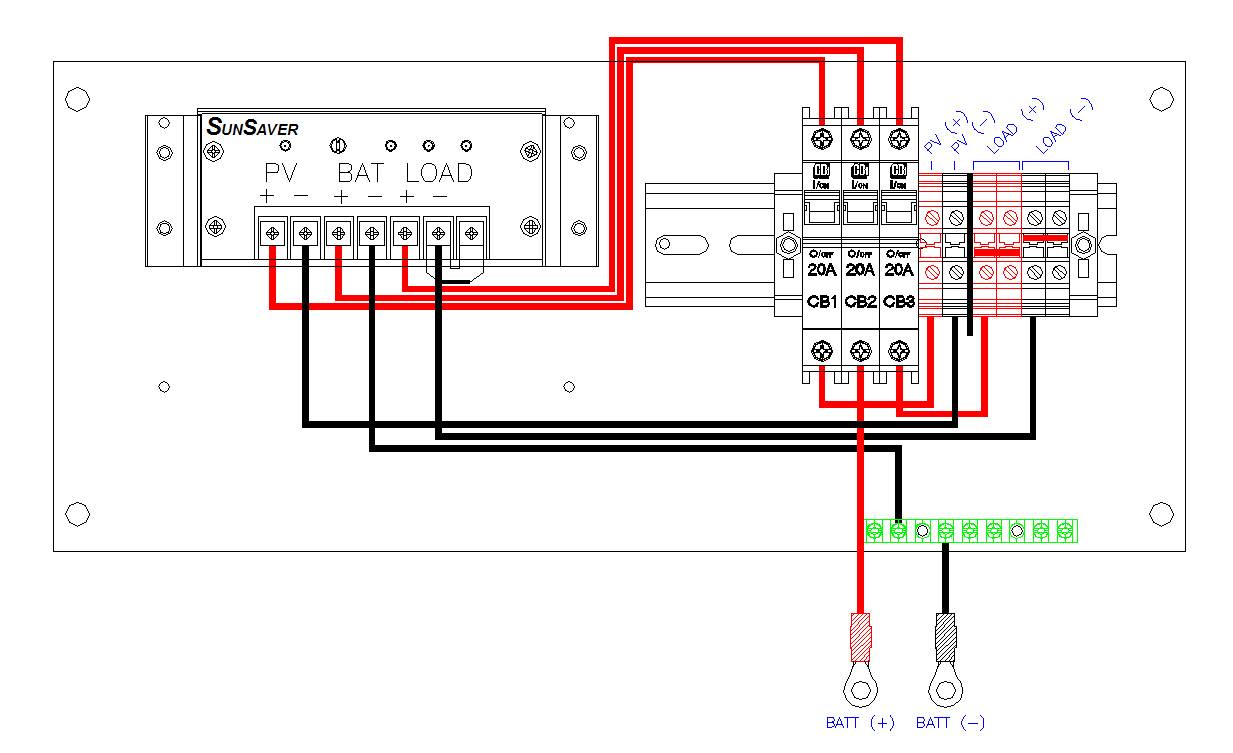

PRE Control Panel
270301 – Data Sheet
270301 – Buy Now

#270301

TECHNICAL SPECIFICATIONS
Solar Module018361
ModelSPC010P
Module Qty1
Array Size10 Watts
Sealed Battery (Gel)002808
ModelMK 8GU1-DEKA
Battery Qty1
Battery Bank Capacity36 Ah at C/100
Control Panel230032
Controller (PWM)Morningstar SS-6L-12V
Mount (Side-of-Pole)240009
Pole Size2"
Mount Windspeed-
Enclosure (NEMA3R)004160
ModelC1-125
Dimensions, Weight17”H x 16” W x 9”D, 12lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270302 – SunWize ® Power Ready Express

12V SunWize Power Ready Express side-of-pole system with front opening C1-125 enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270302 – Data Sheet
270302 – Buy Now

#270302

TECHNICAL SPECIFICATIONS
Solar Module018362
ModelSPC020P
Module Qty1
Array Size20 Watts
Sealed Battery (Gel)002808
ModelMK 8GU1-DEKA
Battery Qty1
Battery Bank Capacity36 Ah at C/100
Control Panel230032
Controller (PWM)Morningstar SS-6L-12V
Mount (Side-of-Pole)007984
Pole Size2"
Mount Windspeed-
Enclosure (NEMA3R)004160
ModelC1-125
Dimensions, Weight17”H x 16” W x 9”D, 12lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270303 – SunWize ® Power Ready Express

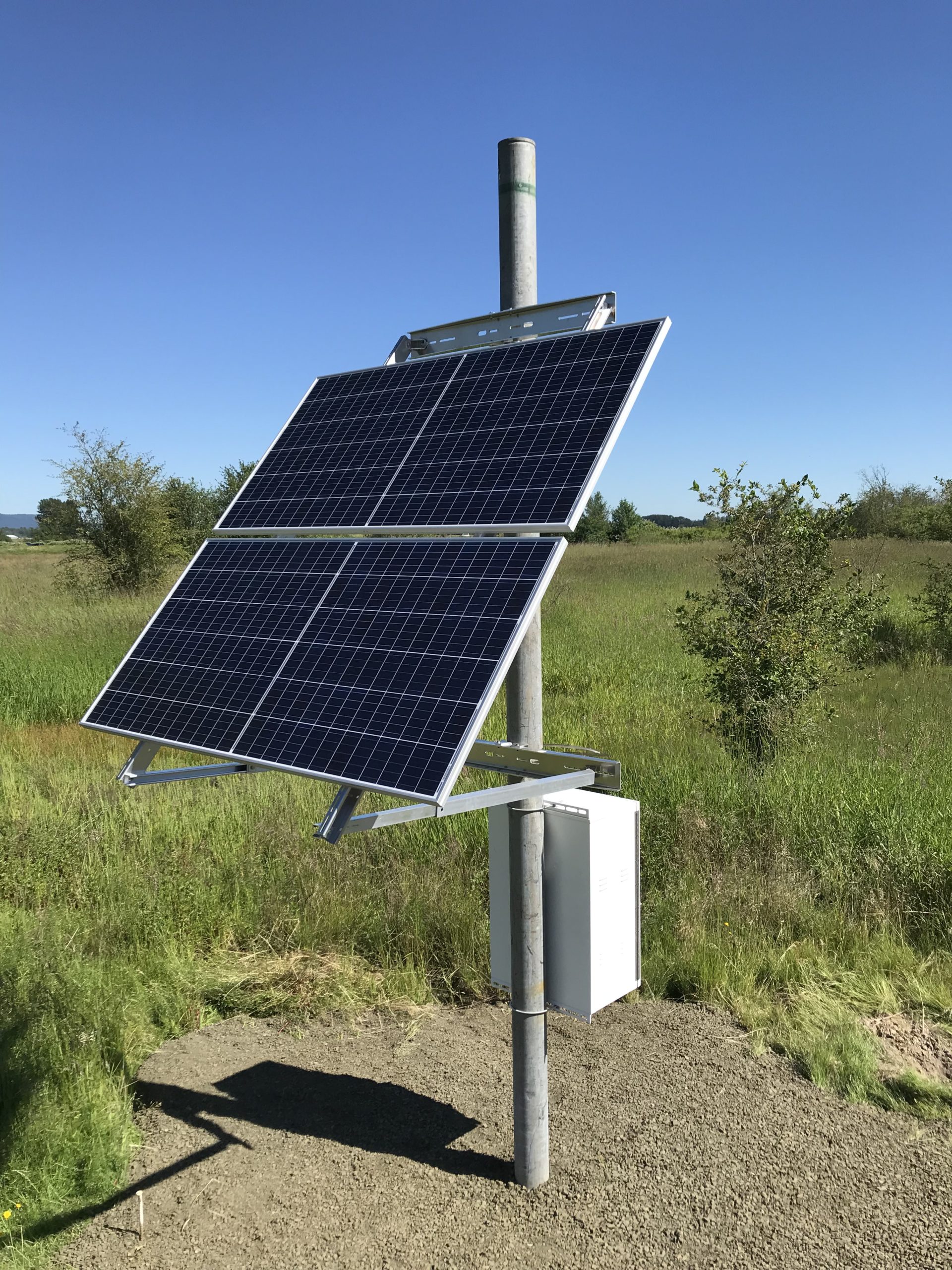

12V SunWize Power Ready Express side-of-pole system with interchangeable front opening F1 or M1-31 enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270303 – Data Sheet
270303 – Buy Now

#270303

TECHNICAL SPECIFICATIONS
Solar Module017098
ModelSWPB 40W
Module Qty1
Array Size40 Watts
Sealed Battery (Gel)002817
ModelMK 8G34-DEKA
Battery Qty1
Battery Bank Capacity70 Ah at C/100
Control Panel230032
Controller (PWM)Morningstar SS-6L-12V
Mount (Side-of-Pole)007985
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004154 or 260012
ModelF1 or M1-31 (interchangeable)
Dimensions, Weight21”H x 16” W x 9”D, 25lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270304 – SunWize ® Power Ready Express

12V SunWize Power Ready Express side-of-pole system with interchangeable front opening F1 or M1-31 enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270304 – Data Sheet
270304 – Buy Now

#270304

TECHNICAL SPECIFICATIONS
Solar Module017114
ModelSWPB 60W
Module Qty1
Array Size60 Watts
Sealed Battery (Gel)002804
ModelMK 8G30H-DEKA
Battery Qty1
Battery Bank Capacity108 Ah at C/100
Control Panel230032
Controller (PWM)Morningstar SS-6L-12V
Mount (Side-of-Pole)007954
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004154 or 260012
ModelF1 or M1-31 (interchangeable)
Dimensions, Weight21”H x 16” W x 9”D, 25lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270305 – SunWize ® Power Ready Express

12V SunWize Power Ready Express side-of-pole system with interchangeable front opening F1 or M1-31 enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270305 – Data Sheet
270305 – Buy Now

#270305

TECHNICAL SPECIFICATIONS
Solar Module017115
ModelSWPB 80W
Module Qty1
Array Size80 Watts
Sealed Battery (Gel)002804
ModelMK 8G30H-DEKA
Battery Qty1
Battery Bank Capacity108 Ah at C/100
Control Panel230032
Controller (PWM)Morningstar SS-6L-12V
Mount (Side-of-Pole)007954
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004154 or 260012
ModelF1 or M1-31 (interchangeable)
Dimensions, Weight21”H x 16” W x 9”D, 25lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270308 – SunWize ® Power Ready Express

12V SunWize Power Ready Express side-of-pole system with interchangeable front opening F2 or M1-8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270308 – Data Sheet
270308 – Buy Now

#270308

TECHNICAL SPECIFICATIONS
Solar Module017102
ModelSWPB 110W
Module Qty1
Array Size110 Watts
Sealed Battery (Gel)002804
ModelMK 8G30H-DEKA
Battery Qty2
Battery Bank Capacity216 Ah at C/100
Control Panel230034
Controller (PWM)Morningstar SS-10L-12V
Mount (Side-of-Pole)007954
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004219 or 260010
ModelF2 or M1-8D (interchangeable)
Dimensions, Weight21”H x 16” W x 14.4”D, 30lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270310 – SunWize ® Power Ready Express

12V SunWize Power Ready Express side-of-pole system with interchangeable front opening F2 or M1-8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270310 – Data Sheet
270310 – Buy Now

#270310

TECHNICAL SPECIFICATIONS
Solar Module019922
ModelSWPB 150W
Module Qty1
Array Size150 Watts
Sealed Battery (Gel)002804
ModelMK 8G30H-DEKA
Battery Qty2
Battery Bank Capacity216 Ah at C/100
Control Panel230034
Controller (PWM)Morningstar SS-10L-12V
Mount (Side-of-Pole)007954
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004219 or 260010
ModelF2 or M1-8D (interchangeable)
Dimensions, Weight21”H x 16” W x 14.4”D, 30lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270313 – SunWize ® Power Ready Express

12V SunWize Power Ready Express side-of-pole system with interchangeable front opening F2 or M1-8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

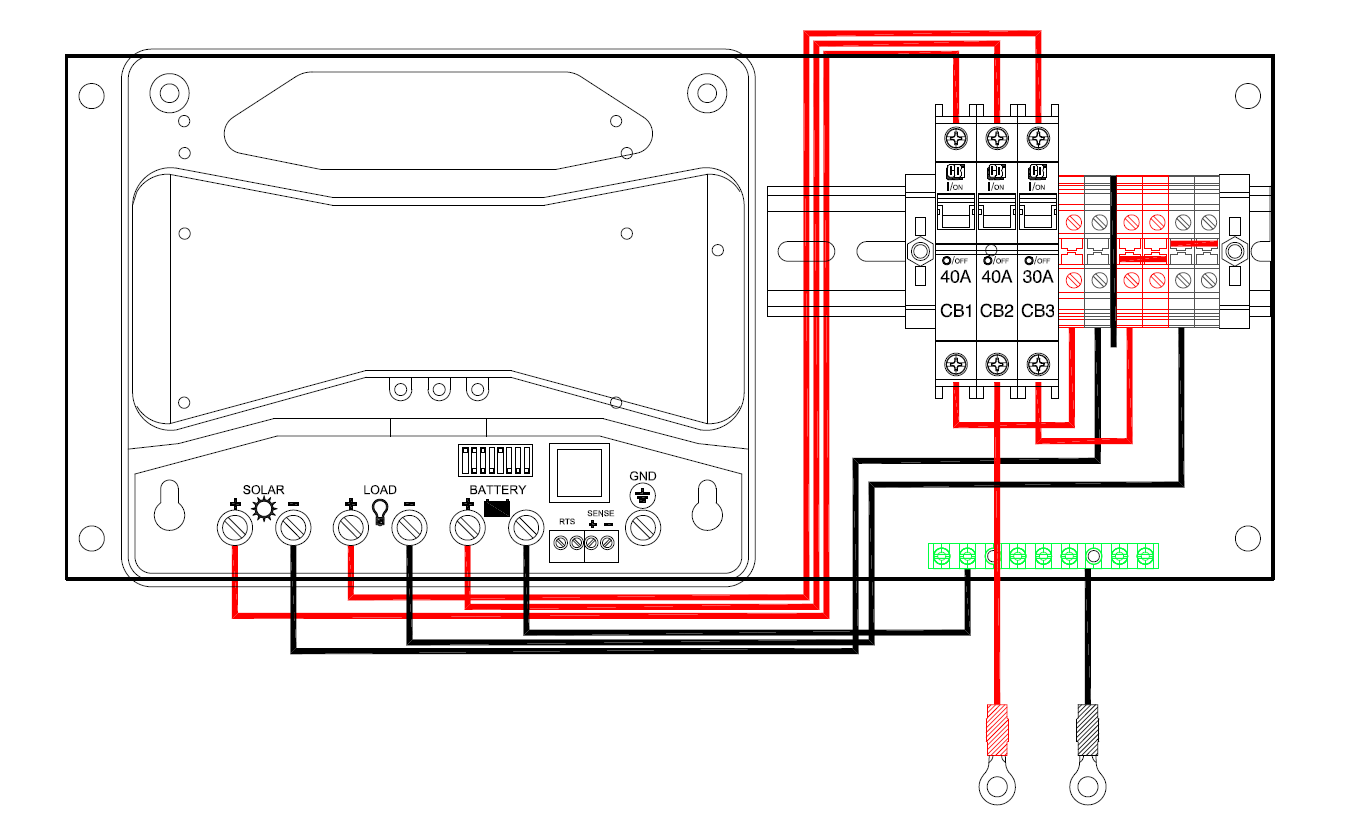

PRE Control Panel
270313 – Data Sheet
270313 – Buy Now

#270313

TECHNICAL SPECIFICATIONS
Solar Module017102
ModelSWPB 110W
Module Qty2
Array Size220 Watts
Sealed Battery (Gel)002804
ModelMK 8G30H-DEKA
Battery Qty2
Battery Bank Capacity216 Ah at C/100
Control Panel230038
Controller (PWM)Morningstar PS-15
Mount (Side-of-Pole)007962 or 007953 (interchangeable)
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004219 or 260010
ModelF2 or M1-8D (interchangeable)
Dimensions, Weight21”H x 16” W x 14.4”D, 30lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270314 – SunWize ® Power Ready Express

12V SunWize Power Ready Express side-of-pole system with interchangeable front opening F2 or M1-8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270314 – Data Sheet
270314 – Buy Now

#270314

TECHNICAL SPECIFICATIONS
Solar Module019922
ModelSWPB 150W
Module Qty2
Array Size300 Watts
Sealed Battery (Gel)002804
ModelMK 8G30H-DEKA
Battery Qty2
Battery Bank Capacity216 Ah at C/100
Control Panel230038
Controller (PWM)Morningstar PS-15
Mount (Side-of-Pole)007962 or 007953 (interchangeable)
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004219 or 260010
ModelF2 or M1-8D (interchangeable)
Dimensions, Weight21”H x 16” W x 14.4”D, 30lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270315 – SunWize ® Power Ready Express

12V SunWize Power Ready Express side-of-pole system with interchangeable front opening F4 or M2-8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270315 – Data Sheet
270315 – Buy Now

#270315

TECHNICAL SPECIFICATIONS
Solar Module019922
ModelSWPB 150W
Module Qty2
Array Size300 Watts
Sealed Battery (Gel)002804
ModelMK 8G30H-DEKA
Battery Qty4
Battery Bank Capacity432 Ah at C/100
Control Panel230038
Controller (PWM)Morningstar PS-15
Mount (Side-of-Pole)007962 or 007953 (interchangeable)
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004222 or 260019
ModelF4 or M2-8D (interchangeable)
Dimensions, Weight32”H x 16” W x 14”D, 40lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270316 – SunWize ® Power Ready Express

12V SunWize Power Ready Express side-of-pole system with chest style top opening T2X8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270316 – Data Sheet
270316 – Buy Now

#270316

TECHNICAL SPECIFICATIONS
Solar Module019922
ModelSWPB 150W
Module Qty2
Array Size300 Watts
Sealed Battery (Gel)002806
ModelMK 8G8DLTP-DEKA
Battery Qty2
Battery Bank Capacity530 Ah at C/100
Control Panel230041
Controller (PWM)Morningstar PS-30
Mount (Side-of-Pole)007962 or 007953 (interchangeable)
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004230
ModelT2X8D
Dimensions, Weight18”H x 32” W x 24”D, 55lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270318 – SunWize ® Power Ready Express

12V SunWize Power Ready Express side-of-pole system with chest style top opening T2X8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270318 – Data Sheet
270318 – Buy Now

#270318

TECHNICAL SPECIFICATIONS
Solar Module017102
ModelSWPB 110W
Module Qty4
Array Size440 Watts
Sealed Battery (Gel)002805
ModelMK 8G4DLTP-DEKA
Battery Qty3
Battery Bank Capacity630 Ah at C/100
Control Panel230058
Controller (PWM)Morningstar PS-40A-MPPT
Mount (Side-of-Pole)007957
Pole Size4"-6"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004230
ModelT2X8D
Dimensions, Weight18”H x 32” W x 24”D, 55lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270319 – SunWize ® Power Ready Express

12V SunWize Power Ready Express side-of-pole system with chest style top opening T4X8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270319 – Data Sheet
270319 – Buy Now

#270319

TECHNICAL SPECIFICATIONS
Solar Module019922
ModelSWPB 150W
Module Qty4
Array Size600 Watts
Sealed Battery (Gel)002806
ModelMK 8G8DLTP-DEKA
Battery Qty3
Battery Bank Capacity795 Ah at C/100
Control Panel230058
Controller (PWM)Morningstar PS-40A-MPPT
Mount (Side-of-Pole)007957
Pole Size4"-6"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004140
ModelT4X8D
Dimensions, Weight21”H x 48” W x 24”D, 55lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270320 – SunWize ® Power Ready Express

12V SunWize Power Ready Express side-of-pole system with chest style top opening T4X8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270320 – Data Sheet
270320 – Buy Now

#270320

TECHNICAL SPECIFICATIONS
Solar Module019922
ModelSWPB 150W
Module Qty4
Array Size600 Watts
Sealed Battery (Gel)002806
ModelMK 8G8DLTP-DEKA
Battery Qty4
Battery Bank Capacity1060 Ah at C/100
Control Panel230058
Controller (PWM)Morningstar PS-40-MPPT
Mount (Side-of-Pole)007957
Pole Size4"-6"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004140
ModelT4X8D
Dimensions, Weight21”H x 48” W x 24”D, 55lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

24V Pole Mounted Systems

270321 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with front opening C1-125 enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270321 – Data Sheet
270321 – Buy Now

#270321

TECHNICAL SPECIFICATIONS
Solar Module019376
ModelSPM020P-WP-F
Module Qty1
Array Size20 Watts
Sealed Battery (Gel)002746
ModelMK ES20-DEKA
Battery Qty2
Battery Bank Capacity20 Ah at C/20
Control Panel230035
Controller (PWM)Morningstar SS-10L-24V
Mount (Side-of-Pole)007984
Pole Size2"
Mount Windspeed-
Enclosure (NEMA3R)004160
ModelC1-125
Dimensions, Weight17”H x 16” W x 9”D, 12lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270322 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with front opening C1-125 enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270322 – Data Sheet
270322 – Buy Now

#270322

TECHNICAL SPECIFICATIONS
Solar Module (C1D2)018645
Model SPM030P-WP-F
Module Qty1
Array Size30 Watts
Sealed Battery (Gel)002808
ModelMK 8GU1-DEKA
Battery Qty2
Battery Bank Capacity36 Ah at C/100
Control Panel230035
Controller (PWM)Morningstar SS-10L-24V
Mount (Side-of-Pole)007984
Pole Size2"
Mount Windspeed-
Enclosure (NEMA3R)004160
ModelC1-125
Dimensions, Weight17”H x 16” W x 9”D, 12lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270323 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with front opening C1-125 enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270323 – Data Sheet
270323 – Buy Now

#270323

TECHNICAL SPECIFICATIONS
Solar Module (C1D2)018648
ModelSPM045P-WP-F
Module Qty1
Array Size45 Watts
Sealed Battery (Gel)002808
ModelMK 8GU1-DEKA
Battery Qty2
Battery Bank Capacity36 Ah at C/100
Control Panel230035
Controller (PWM)Morningstar SS-10L-24V
Mount (Side-of-Pole)007985
Pole Size2"
Mount Windspeed-
Enclosure (NEMA3R)004160
ModelC1-125
Dimensions, Weight17”H x 16” W x 9”D, 12lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270324 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with front opening interchangeable F2 or M1-8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270324 – Data Sheet
270324 – Buy Now

#270324

TECHNICAL SPECIFICATIONS
Solar Module (C1D2)018664
ModelSPM085P-WP-F
Module Qty1
Array Size85 Watts
Sealed Battery (Gel)002817
ModelMK 8G34-DEKA
Battery Qty2
Battery Bank Capacity70 Ah at C/100
Control Panel230035
Controller (PWM)Morningstar SS-10L-24V
Mount (Side-of-Pole)007954
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004219 or 260010
ModelF2 or M1-8D (interchangeable)
Dimensions, Weight21”H x 16” W x 14.4”D, 30lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270325 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with interchangeable front opening F2 or M1-8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270325 – Data Sheet
270325 – Buy Now

#270325

TECHNICAL SPECIFICATIONS
Solar Module (C1D2)018672
ModelSPM130P-SWP-F
Module Qty1
Array Size130 Watts
Sealed Battery (Gel)002804
ModelMK 8G30H-DEKA
Battery Qty2
Battery Bank Capacity108 Ah at C/100
Control Panel230035
Controller (PWM)Morningstar SS-10L-24V
Mount (Side-of-Pole)007954
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004219 or 260010
ModelF2 or M1-8D (interchangeable)
Dimensions, Weight21”H x 16”W x 14.4”D, 30lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270326 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with interchangeable front opening F2 or M1-8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270326 – Data Sheet
270326 – Buy Now

#270326

TECHNICAL SPECIFICATIONS
Solar Module017115
ModelSWPB 80W
Module Qty2
Array Size160 Watts
Sealed Battery (Gel)002804
ModelMK 8G30H-DEKA
Battery Qty2
Battery Bank Capacity108 Ah at C/100
Control Panel230035
Controller (PWM)Morningstar SS-10L-24V
Mount (Side-of-Pole)007962 or 007953 (interchangeable)
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004219 or 260010
ModelF2 or M1-8D (interchangeable)
Dimensions, Weight21”H x 16”W x 14.4”D, 30lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270329 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with interchangeable front opening F4 or M2-8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270329 – Data Sheet
270329 – Buy Now

#270329

TECHNICAL SPECIFICATIONS
Solar Module017102
ModelSWPB 110W
Module Qty2
Array Size220 Watts
Sealed Battery (Gel)002804
ModelMK 8G30H-DEKA
Battery Qty4
Battery Bank Capacity216 Ah at C/100
Control Panel230035
Controller (PWM)Morningstar SS-10L-24V
Mount (Side-of-Pole)007962 or 007953 (interchangeable)
Pole Size2"-4"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004222 or 260019
ModelF4 or M2-8D (interchangeable)
Dimensions, Weight32”H x 16”W x 14”D, 40lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270332 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with interchangeable front opening F4 or M2-8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270332 – Data Sheet
270332 – Buy Now

#270332

TECHNICAL SPECIFICATIONS
Solar Module019317 or Similar
ModelNSP 310W, Yingli 320W, or Similar A-Grade 72-Cell 310W+ Large Format Module
Module Qty1
Array Size310+ Watts
Sealed Battery (Gel)002804
ModelMK 8G30H-DEKA
Battery Qty4
Battery Bank Capacity216 Ah at C/100
Control Panel230037
Controller (PWM)Morningstar SS-20L-24V
Mount (Side-of-Pole)018889
Pole Size2"-3.5"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004222 or 260019
ModelF4 or M2-8D (interchangeable)
Dimensions, Weight32”H x 16”W x 14”D, 40lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270346 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with front opening T4X8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270346 – Data Sheet
270346 – Buy Now

#270346

TECHNICAL SPECIFICATIONS
Solar Module019317 or Similar
ModelNSP 310W, Yingli 320W, or Similar A-Grade 72-Cell 310W+ Large Format Module
Module Qty2
Array Size620+ Watts
Sealed Battery (Gel)002806
ModelMK 8G8D-DEKA
Battery Qty4
Battery Bank Capacity530 Ah at C/100
Control Panel230041
Controller (PWM)Morningstar PS-30
Mount (Side-of-Pole)018896
Pole Size3"-4.5"
Mount Windspeed110MPH Exposure C, ASCE 7.05
Enclosure (NEMA3R)004140
ModelT4X8D
Dimensions, Weight21”H x 48”W x 24”D, 75lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270338 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with front opening T8X8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270338 – Data Sheet
270338 – Buy Now

#270338

TECHNICAL SPECIFICATIONS
Solar Module018682
ModelJTM 190W
Module Qty4
Array Size760 Watts
Sealed Battery (Gel)002805
ModelMK 8G4DLTP-DEKA
Battery Qty6
Battery Bank Capacity630 Ah at C/100
Control Panel230058
Controller (PWM)Morningstar PS-40A-MPPT
Mount (Top-of-Pole)017249
Pole Size6"
Mount Windspeed90MPH
Enclosure (NEMA3R)016897
ModelT8X8D
Dimensions, Weight21”H x 48”W x 48”D, 150lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270339 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with front opening T8X8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270339 – Data Sheet
270339 – Buy Now

#270339

TECHNICAL SPECIFICATIONS
Solar Module019317 or Similar
ModelNSP 310W, Yingli 320W, or Similar A-Grade 72-Cell 310W+ Large Format Module
Module Qty3
Array Size930+ Watts
Sealed Battery (Gel)002805
ModelMK 8G4DLTP-DEKA
Battery Qty6
Battery Bank Capacity630 Ah at C/100
Control Panel230041
Controller (PWM)Morningstar PS-30
Mount (Top-of-Pole)018876
Pole Size4"
Mount Windspeed90MPH
Enclosure (NEMA3R)016897
ModelT8X8D
Dimensions, Weight21”H x 48”W x 48”D, 150lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270340 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with front opening T8X8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270340 – Data Sheet
270340 – Buy Now

#270340

TECHNICAL SPECIFICATIONS
Solar Module019317 or Similar
ModelNSP 310W, Yingli 320W, or Similar A-Grade 72-Cell 310W+ Large Format Module
Module Qty3
Array Size930+ Watts
Sealed Battery (Gel)002806
ModelMK 8G8DLTP-DEKA
Battery Qty6
Battery Bank Capacity795 Ah at C/100
Control Panel230041
Controller (PWM)Morningstar PS-30
Mount (Top-of-Pole)018876
Pole Size4"
Mount Windspeed90MPH
Enclosure (NEMA3R)016897
ModelT8X8D
Dimensions, Weight21”H x 48”W x 48”D, 150lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.

270341 – SunWize ® Power Ready Express

24V SunWize Power Ready Express side-of-pole system with front opening T8X8D enclosure is a complete off-grid solar battery kit that contains everything you need to run a stand-alone DC load using solar energy. Need something customized? Call us!

Similar to our Power Ready line of fully-assembled systems, but in a kit package, the PRE line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Ready Express kits feature a pre-wired and fully pre-assembled control panel, requiring only simple array and battery connection terminations during installation.

PRE Control Panel
270341 – Data Sheet
270341 – Buy Now

#270341

TECHNICAL SPECIFICATIONS
Solar Module019317 or Similar
ModelNSP 310W, Yingli 320W, or Similar A-Grade 72-Cell 310W+ Large Format Module
Module Qty4
Array Size1240+ Watts
Sealed Battery (Gel)002806
ModelMK 8G8DLTP-DEKA
Battery Qty8
Battery Bank Capacity1060 Ah at C/100
Control Panel230058
Controller (PWM)Morningstar PS40A-MPPT
Mount (Top-of-Pole)018877
Pole Size6"
Mount Windspeed90MPH
Enclosure (NEMA3R)016897
ModelT8X8D
Dimensions, Weight21”H x 48”W x 48”D, 150lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need to run a stand-alone DC load using solar energy.
Looking for our selection of Power Ready Express Control Panels?

In-stock, pre-wired, QC tested control panels featuring Morningstar and Phocos PWM and MPPT charge controllers.

Available in 12V, 24V, and 48V configurations, with up to 40A rated charge controllers, supporting up to 30A of current loads at 24VDC.

PRE Control Panels

Share this Project
