POR Battery Backup Systems

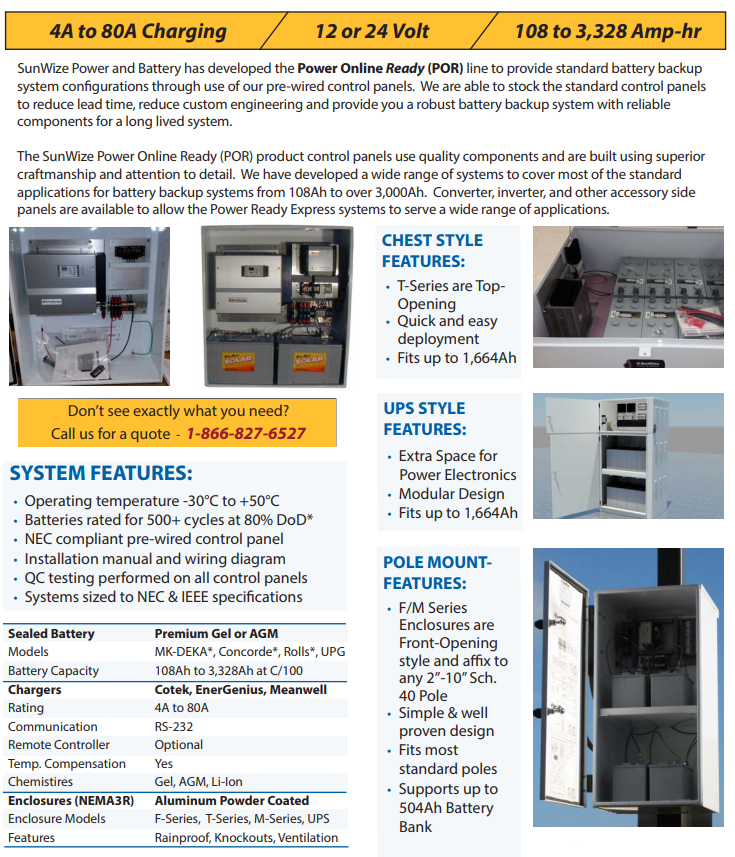

POR SystemsSunWize Power and Battery has developed the Power Online Ready (POR) line to provide standard battery backup system configurations through use of our pre-wired control panels. We are able to stock the standard control panels to reduce lead time, reduce custom engineering and provide you a robust battery backup system with reliable components for a long lived system.

The SunWize Power Online Ready (POR) product control panels use quality components and are built using superior craftmanship and attention to detail. We have developed a wide range of systems to cover most of the standard applications for battery backup systems from 108Ah to over 3,000Ah. Converter, inverter, and other accessory side panels are available to allow the Power Online Ready systems to serve a wide range of applications.

The SunWize Power Online Ready (PRE) product line uses the same high quality components as our customized Power Online solutions. We have developed a wide range of systems to cover most of the standard applications for remote battery backup systems from 108 to over 3,000 Ah of energy storage. Don’t see exactly what you need? We can customize any system! (866) 827-6527

STOCKED POWER ONLINE READY SYSTEMS CAN SHIP DAY OF ORDER

There are (4) easy ways to order POR systems from SunWize
  1. Call us at 866-827-6527 for a quote!
  2. Something New Coming Soon!
  3. Submit your project information with our System Sizing Form
  4. Use SunWize Connect to shop for Power Ready systems now!

Features include:
  • Cotek CX Series Battery Chargers, with SENS EnerGenius Models available as upgrade
  • NEMA 3R, white powder-coated, outdoor aluminum enclosures
  • 12V & 6V deep cycle Gel batteries
  • Pre-wired battery charger control panel
  • Low Voltage Disconnect and Temperature Compensation standard features
  • Installation manual and wiring diagram
  • Factory QC testing performed on all systems

Environmental Specifications
Ambient Temperature-30°C to 50°C
Relative Humidity100% condensing
Altitude3000m max
SeismicZone 4

Electrical Specifications
Battery Voltage12V or 24VDC nominal.
Battery Charger Rating100W up to 1,920W of battery charging
Load Current0.1A to 60A
Temperature CompensationStandard on all models
Battery Capacity108 to 3,328Ah

POR Design Guides!

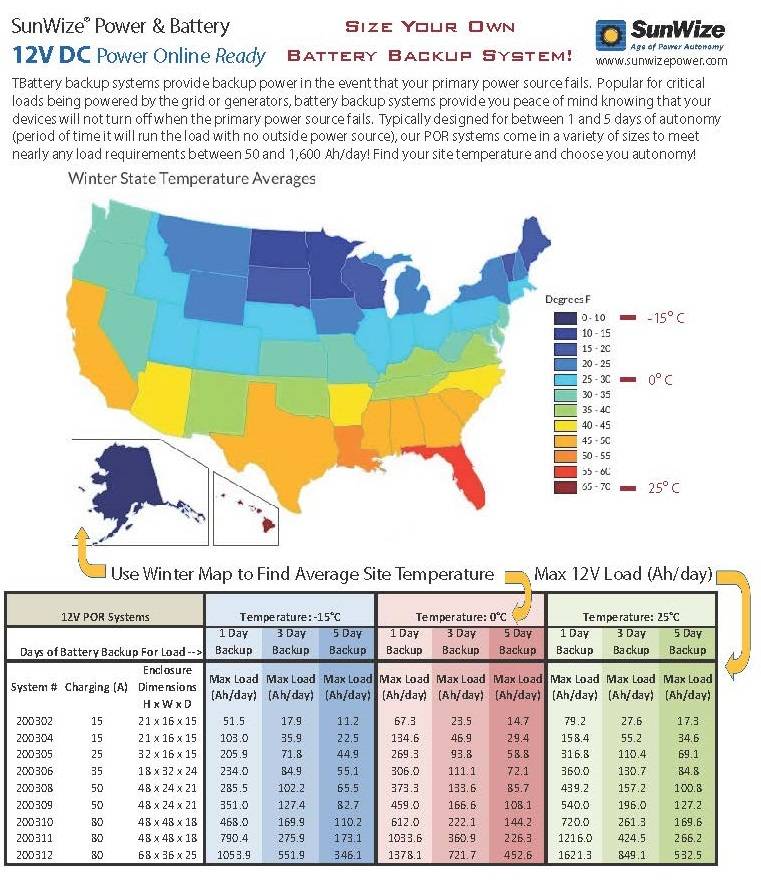

Use the project site’s temperature zone from the map and then match it to your system load! Use the table to find correct system part# and then call or order on SunWize Connect!
The temperature map, showing the average winter temperatures, is used to design a battery backup system for your equipment location. The Power Online Ready series is built for reliable operation in the worst case weather conditions. Our systems are designed for between 1 and 5 days of battery backup autonomy. Click Here to download PDF.

If you need a system cuztomized to your specifications, or have any questions, call us for a quote at (866) 827-6527.


12V POR Design Guide Table

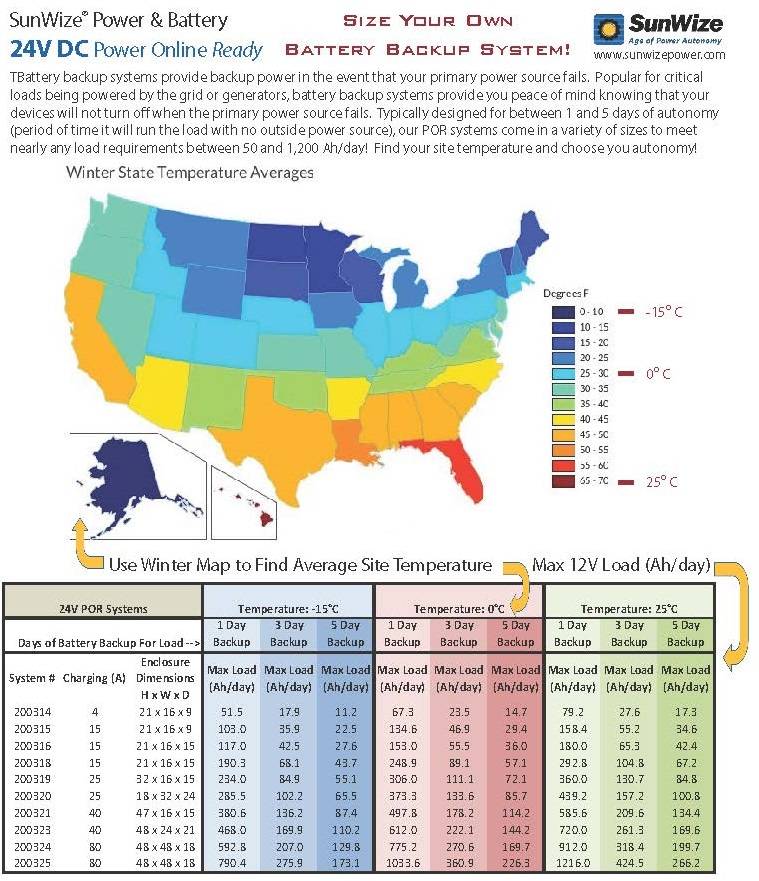

The temperature map, showing the average winter temperatures, is used to design a battery backup system for your equipment location. The Power Online Ready series is built for reliable operation in the worst case weather conditions. Our systems are designed for between 1 and 5 days of battery backup autonomy. Click Here to download PDF.

If you need a system cuztomized to your specifications, or have any questions, call us for a quote at (866) 827-6527.


24V POR Design Guide Table

POR Compatible Accessory Panels

230082 – SunWize ® PRE Accessory Panels

SunWize Power Ready Express accessory panel with pre-wired Peltec Timer. Easily integrates directly with any existing Power Ready Express Control Panel. Fully programmable timer featuring 24-hour, 7-day schedule and (3) load connections. Need something customized? Call us!

The new Power Ready Express accessory panels give versatility to all of our standard PRE systems.

PRE Timer Panel
230082 – Data Sheet
230082 – Buy Now

#230082

TECHNICAL SPECIFICATIONS
GENERAL FEATURES
Digital Display
1 year Warranty
24-hour, 7-day programming
Easily wires directly into any existing PRE panel
The timer accessory side plate features a Peltec fully programmable, 24-hour, 7-day, digital timer. The timer has a digital display that displays the current status of the timer and allows easy adjustment of the timer’s programming.

230084 – SunWize ® PRE Accessory Panels

The 3 pole combiner accessory side plate wires into an existing PRE Control Panel’s PV input and allows three separate strings of solar modules to provide power to a PRE system. This allows a system to harvest more power increasing reliabilty and decreasing the recharge time of the batteries. Need something customized? Call us!

The new Power Ready Express accessory panels give versatility to all of our standard PRE systems.

PRE Accessory Panel
230084 – Data Sheet
230084 – Buy Now

#230084

TECHNICAL SPECIFICATIONS
GENERAL FEATURES
(3x) 15A, 150VDC rated circuit breakers for array strings
1 year Warranty
Pre-wired and fully assembled
Easily wires directly into any existing PRE panel
The 3 pole combiner accessory side plate wires into an existing PRE Control Panel’s PV input and allows three separate strings of solar modules to provide power to a PRE system. This allows a system to harvest more power increasing reliability and decreasing the recharge time of the batteries.

230077 – SunWize ® PRE Accessory Panel

The inverter control panel features a Cotek DC:AC inverter that hooks directly to the user’s battery bank. The inverter outputs 200 watts of pure sine wave AC power at 50 or 60 Hz. Need something customized? Call us!

The new Power Ready Express accessory panels give versatility to all of our standard PRE systems.

PRE Accessory Panel
230077 – Data Sheet
230077 – Buy Now

#230077

ModelSE200-112
TECHNICAL SPECIFICATIONS
GENERAL FEATURES
Input Voltage12VDC
Output Voltage120VDC
Frequency50 / 60 Hz
Rated Continuous Power200VA
Surge Power Output (3 Sec.)250VA
1 year Warranty

Pre-wired and fully assembled
Easily wires directly into any existing PRE panel
The inverter control panel features a Cotek DC:AC inverter that hooks directly to the user’s battery bank. The inverter
outputs 200 watts of pure sine wave AC power at 50 or 60 Hz.

230078 – SunWize ® PRE Accessory Panel

The inverter control panel features a Cotek DC:AC inverter that hooks directly to the user’s battery bank. The inverter outputs 200 watts of pure sine wave AC power at 50 or 60 Hz. Need something customized? Call us!

The new Power Ready Express accessory panels give versatility to all of our standard PRE systems.

PRE Accessory Panel
230078 – Data Sheet
230078 – Buy Now

#230078

ModelSE200-124
TECHNICAL SPECIFICATIONS
GENERAL FEATURES
Input Voltage24VDC
Output Voltage120VDC
Frequency50 / 60 Hz
Rated Continuous Power200VA
Surge Power Output (3 Sec.)250VA
1 year Warranty
Pre-wired and fully assembled
Easily wires directly into any existing PRE panel
The inverter control panel features a Cotek DC:AC inverter that hooks directly to the user’s battery bank. The inverter
outputs 200 watts of pure sine wave AC power at 50 or 60 Hz.

230074 – SunWize ® PRE Accessory Panel

The converter control panel features a Mean Well DC:DC converter that plugs directly into a PRE Control Panel’s output terminals. The control panel also has a combiner with two (2) 15A breakers that allows the user to plug two strings of PV modules into a single PRE control panel.
PRE Need something customized? Call us!

The new Power Ready Express accessory panels give versatility to all of our standard PRE systems.

PRE Accessory Panel
230074 – Data Sheet
230074 – Buy Now

#230074

ModelSD-25B-12
TECHNICAL SPECIFICATIONS
GENERAL FEATURES
24VDC Input Voltage19-36VDC
Efficiency75%
Output Voltage12VDC
Rated Continuous Power25W
Operating Temps-10°C to +60°C
1 year Warranty
#colspan#
Pre-wired and fully assembled
Easily wires directly into any existing PRE panel
The converter control panel features a Mean Well DC:DC converter that plugs directly into a PRE Control Panel’s output terminals. The control panel also has a combiner with two (2) 15A breakers that allows the user to plug two strings of PV modules into a single PRE control panel.

230079 – SunWize ® PRE Accessory Panel

The converter control panel features a Mean Well DC:DC converter that plugs directly into a PRE Control Panel’s output terminals. The control panel also has a combiner with two (2) 15A breakers that allows the user to plug two strings of PV modules into a single PRE control panel.
PRE Need something customized? Call us!

The new Power Ready Express accessory panels give versatility to all of our standard PRE systems.

PRE Accessory Panel
230079 – Data Sheet
230079 – Buy Now

#230079

ModelSD-25A-24
TECHNICAL SPECIFICATIONS
GENERAL FEATURES
12VDC Input Voltage9.2-18VDC
Efficiency75%
Output Voltage24VDC
Rated Continuous Power25W
Operating Temps-10°C to +60°C
1 year Warranty
#colspan#
Pre-wired and fully assembled
Easily wires directly into any existing PRE panel
The converter control panel features a Mean Well DC:DC converter that plugs directly into a PRE Control Panel’s output terminals. The control panel also has a combiner with two (2) 15A breakers that allows the user to plug two strings of PV modules into a single PRE control panel.

12V Battery Backup POR Systems

200302 – SunWize ® Power Online Ready

12V SunWize Power Online Ready (POR) battery backup system with front opening F2 enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200302 – Data Sheet
200302 – Buy Now

#200302

TECHNICAL SPECIFICATIONS
Power Supply018763
ModelCotek CX1215
Charge Rating (Amps)15
Sealed Battery (Gel)002815
ModelMK 8G31-DEKA
Battery Qty1
Battery Bank Capacity108 Ah at C/100
Enclosure (NEMA3R)004219
ModelF2
Dimensions, Weight20.8”H x 16” W x 14.4”D, 30lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200304 – SunWize ® Power Online Ready

12V SunWize Power Online Ready (POR) battery backup system with front opening F2 enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200304 – Data Sheet
200304 – Buy Now

#200304

TECHNICAL SPECIFICATIONS
Battery Charger018763
ModelCotek CX1215
Charge Rating (Amps)15
Sealed Battery (Gel)002815
ModelMK 8G31-DEKA
Battery Qty2
Battery Bank Capacity216 Ah at C/100
Enclosure (NEMA3R)004219
ModelF2
Dimensions, Weight20.8”H x 16” W x 14.4”D, 30lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200305 – SunWize ® Power Online Ready

12V SunWize Power Online Ready (POR) battery backup system with front opening F4 enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200305 – Data Sheet
200305 – Buy Now

#200305

TECHNICAL SPECIFICATIONS
Battery Charger018764
ModelCotek CX1225
Charge Rating (Amps)25
Sealed Battery (Gel)002815
ModelMK 8G31-DEKA
Battery Qty4
Battery Bank Capacity432 Ah at C/100
Enclosure (NEMA3R)004222
ModelF4
Dimensions, Weight32”H x 16” W x 14.4”D, 40lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200306 – SunWize ® Power Online Ready

12V SunWize Power Online Ready (POR) battery backup system with front opening M2-8D enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200306 – Data Sheet
200306 – Buy Now

#200306

TECHNICAL SPECIFICATIONS
Battery Charger018765
ModelCotek CX1235
Charge Rating (Amps)35
Sealed Battery (Gel)002806
ModelMK 8G8DLTP-DEKA
Battery Qty2
Battery Bank Capacity530 Ah at C/100
Enclosure (NEMA3R)260019
ModelM2-8D
Dimensions, Weight36.6”H x 25” W x 14.5”D, 48lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200308 – SunWize ® Power Online Ready

12V SunWize Power Online Ready (POR) battery backup system with front opening T-4X8D enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200308 – Data Sheet
200308 – Buy Now

#200308

TECHNICAL SPECIFICATIONS
Battery Charger018766
ModelCotek CX1250
Charge Rating (Amps)50
Sealed Battery (Gel)002805
ModelMK 8G4DLTP-DEKA
Battery Qty3
Battery Bank Capacity630 Ah at C/100
Enclosure (NEMA3R)004140
ModelT-4X8D
Dimensions, Weight20.5”H x 48.3” W x 23.8”D, 75lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200309 – SunWize ® Power Online Ready

12V SunWize Power Online Ready (POR) battery backup system with front opening T-4X8D enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200309 – Data Sheet
200309 – Buy Now

#200309

TECHNICAL SPECIFICATIONS
Battery Charger018766
ModelCotek CX1250
Charge Rating (Amps)50
Sealed Battery (Gel)002806
ModelMK 8G8DLTP-DEKA
Battery Qty3
Battery Bank Capacity795 Ah at C/100
Enclosure (NEMA3R)004140
ModelT-4X8D
Dimensions, Weight20.5”H x 48.3” W x 23.8”D, 75lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200310 – SunWize ® Power Online Ready

12V SunWize Power Online Ready (POR) battery backup system with front opening T-8X8D enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200310 – Data Sheet
200310 – Buy Now

#200310

TECHNICAL SPECIFICATIONS
Battery Charger018767
ModelCotek CX1280
Charge Rating (Amps)80
Sealed Battery (Gel)002806
ModelMK 8G8DLTP-DEKA
Battery Qty4
Battery Bank Capacity1060 Ah at C/100
Enclosure (NEMA3R)016897
ModelT-8X8D
Dimensions, Weight20.5”H x 48.3” W x 46”D, 150lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200311 – SunWize ® Power Online Ready

12V SunWize Power Online Ready (POR) battery backup system with front opening T-8X8D enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200311 – Data Sheet
200311 – Buy Now

#200311

TECHNICAL SPECIFICATIONS
Battery Charger018767
ModelCotek CX1280
Charge Rating (Amps)80
Sealed Battery (Gel)017077
ModelUPG 40870 L16
Battery Qty8
Battery Bank Capacity1664 Ah at C/100
Enclosure (NEMA3R)016897
ModelT-8X8D
Dimensions, Weight20.5”H x 48.3” W x 46”D, 150lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200312 – SunWize ® Power Online Ready

12V SunWize Power Online Ready (POR) battery backup system with front opening UPG enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200312 – Data Sheet
200312 – Buy Now

#200312

TECHNICAL SPECIFICATIONS
Battery Charger018767
ModelCotek CX1280
Charge Rating (Amps)80
Sealed Battery (Gel)017077
ModelUPG 40870 L16
Battery Qty16
Battery Bank Capacity3328 Ah at C/100
Enclosure (NEMA3R)016897
ModelT-8X8D
Dimensions, Weight20.5”H x 48.3” W x 46”D, 150lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

24V Battery Backup POR Systems

200314 – SunWize ® Power Online Ready

24V SunWize Power Online Ready (POR) battery backup system with front opening F2 enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200314 – Data Sheet
200314 – Buy Now

#200314

TECHNICAL SPECIFICATIONS
Power Supply002156
ModelMeanwell MDR-100-24
Charge Rating (Amps)4
Sealed Battery (Gel)002815
ModelMK 8G31-DEKA
Battery Qty2
Battery Bank Capacity108 Ah at C/100
Enclosure (NEMA3R)004219
ModelF2
Dimensions, Weight20.8”H x 16” W x 14.4”D, 30lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200315 – SunWize ® Power Online Ready

24V SunWize Power Online Ready (POR) battery backup system with front opening F2 enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200315 – Data Sheet
200315 – Buy Now

#200315

TECHNICAL SPECIFICATIONS
Battery Charger018624
ModelCotek CX2415
Charge Rating (Amps)15
Sealed Battery (Gel)002815
ModelMK 8G31-DEKA
Battery Qty4
Battery Bank Capacity216 Ah at C/100
Enclosure (NEMA3R)004222
ModelF4
Dimensions, Weight32”H x 16” W x 14.4”D, 40lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200316 – SunWize ® Power Online Ready

24V SunWize Power Online Ready (POR) battery backup system with Front Opening M2-8D enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200316 – Data Sheet
200316 – Buy Now

#200316

TECHNICAL SPECIFICATIONS
Battery Charger018624
ModelCotek CX2415
Charge Rating (Amps)15
Sealed Battery (Gel)002806
ModelMK 8G8DLTP-DEKA
Battery Qty2
Battery Bank Capacity265 Ah at C/100
Enclosure (NEMA3R)004230
ModelT-2X8D
Dimensions, Weight20.5”H x 31.3” W x 23.8”D, 55lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200318 – SunWize ® Power Online Ready

24V SunWize Power Online Ready (POR) battery backup system with Front Opening M2-8D enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200318 – Data Sheet
200318 – Buy Now

#200318

TECHNICAL SPECIFICATIONS
Battery Charger018624
ModelCotek CX2415
Charge Rating (Amps)15
Sealed Battery (Gel)002805
ModelMK 8G4DLTP-DEKA
Battery Qty4
Battery Bank Capacity420 Ah at C/100
Enclosure (NEMA3R)004140
ModelT-4X8D
Dimensions, Weight20.5”H x 48.3” W x 23.8”D, 75lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200319 – SunWize ® Power Online Ready

24V SunWize Power Online Ready (POR) battery backup system with Front Opening T-4X8D enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200319 – Data Sheet
200319 – Buy Now

#200319

TECHNICAL SPECIFICATIONS
Battery Charger018768
ModelCotek CX2425
Charge Rating (Amps)25
Sealed Battery (Gel)002806
ModelMK 8G8DLTP-DEKA
Battery Qty4
Battery Bank Capacity530 Ah at C/100
Enclosure (NEMA3R)004140
ModelT-4X8D
Dimensions, Weight20.5”H x 48.3” W x 23.8”D, 75lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200320 – SunWize ® Power Online Ready

24V SunWize Power Online Ready (POR) battery backup system with Front Opening T-8X8D enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200320 – Data Sheet
200320 – Buy Now

#200320

TECHNICAL SPECIFICATIONS
Battery Charger018768
ModelCotek CX2425
Charge Rating (Amps)25
Sealed Battery (Gel)002805
ModelMK 8G4DLTP-DEKA
Battery Qty6
Battery Bank Capacity630 Ah at C/100
Enclosure (NEMA3R)016897
ModelT-8X8D
Dimensions, Weight20.5”H x 48.3” W x 46”D, 150lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200321 – SunWize ® Power Online Ready

24V SunWize Power Online Ready (POR) battery backup system with Front Opening T-8X8D enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200321 – Data Sheet
200321 – Buy Now

#200321

TECHNICAL SPECIFICATIONS
Battery Charger018769
ModelCotek CX2440
Charge Rating (Amps)40
Sealed Battery (Gel)002805
ModelMK 8G4DLTP-DEKA
Battery Qty8
Battery Bank Capacity840 Ah at C/100
Enclosure (NEMA3R)016897
ModelT-8X8D
Dimensions, Weight20.5”H x 48.3” W x 46”D, 150lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200323 – SunWize ® Power Online Ready

24V SunWize Power Online Ready (POR) battery backup system with Front Opening T-8X8D enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200323 – Data Sheet
200323 – Buy Now

#200323

TECHNICAL SPECIFICATIONS
Battery Charger018769
ModelCotek CX2440
Charge Rating (Amps)40
Sealed Battery (Gel)002806
ModelMK 8G8DLTP-DEKA
Battery Qty8
Battery Bank Capacity1060 Ah at C/100
Enclosure (NEMA3R)016897
ModelT-8X8D
Dimensions, Weight20.5”H x 48.3” W x 46”D, 150lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200324 – SunWize ® Power Online Ready

24V SunWize Power Online Ready (POR) battery backup system with Front Opening UPS enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200324 – Data Sheet
200324 – Buy Now

#200324

TECHNICAL SPECIFICATIONS
Battery Charger018769
Model2x Cotek CX2440
Charge Rating (Amps)80
Sealed Battery (Gel)002806
ModelUPG 416Ah 40870 L16
Battery Qty12
Battery Bank Capacity1248 Ah at C/100
Enclosure (NEMA3R)260004
ModelUPS
Dimensions, Weight66”H x 36” W x 25”D, 175lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system

200325 – SunWize ® Power Online Ready

24V SunWize Power Online Ready (POR) battery backup system with Front Opening UPS enclosure is a complete off-grid battery backup system. Need something customized? Call us!

Similar to our Power Online line of battery backup systems, but in a kit package, the POR line of kits contain all pre-inventoried items, allowing us to quickly fulfill orders. Power Online Ready kits feature a pre-wired and fully pre-assembled control panel, requiring only simple load and battery connection terminations during installation.


200325 – Data Sheet
200325 – Buy Now

#200325

TECHNICAL SPECIFICATIONS
Battery Charger018769
Model2x Cotek CX2440
Charge Rating (Amps)80
Sealed Battery (Gel)002806
ModelUPG 416Ah 40870 L16
Battery Qty16
Battery Bank Capacity1664 Ah at C/100
Enclosure (NEMA3R)260004
ModelUPS
Dimensions, Weight66”H x 36” W x 25”D, 175lbs
GENERAL FEATURES
Operating Temperature-30°C to 50°C
Warranty
1 year
PRODUCT FEATURES
NEC Compliant Circuit Protection | Sealed Battery rated for 500 cycles at 80% DoD | Overload, short-circuit, high voltage, reverse polarity, and lightning/transient surge protection
Includes everything you need for a stand-alone battery backup system
Looking for our selection of Power Online Ready Control Panels?

In-stock, pre-wired, QC tested control panels featuring Cotek and SENS battery chargers.

Available in 12V and 24V configurations, with up to 80A rated charge controllers and over 3,000Ah of energy storage.

PRE Control Panels

Share this Project
