RapidSet – Skid Structure for 96″ Mount and Enclosure

Name: RapidSet - Skid Structure for 96" Mount and Enclosure
SKU: 250160
Availability: OutOfStock

Easy to setup, hot-dipped galvanized skid base with forklift pockets supports up to 750W array with (2) large format modules and up to 1,320 Ah energy storage at 12VDC with the integrated enclosure. Module, mount, battery, enclosures sold separately.

From: $2,395.62

Part Number: 250160

Features

Hot dipped galvanized steel frame is welded for durability
Forklift pockets make relocation easy for on-site handling

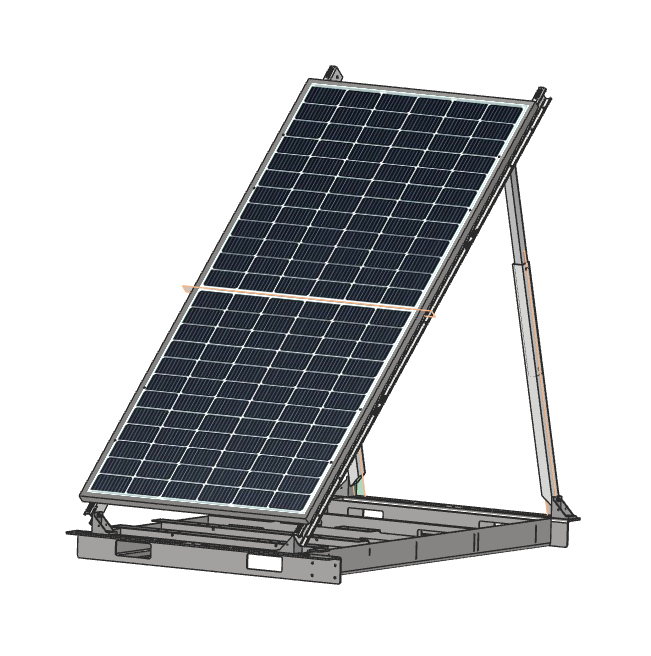

Supports up to (2) large-format and commercial solar modules (modules sold separately)
Supports up to 1,320Ah of energy storage at 12VDC (batteries sold separate)

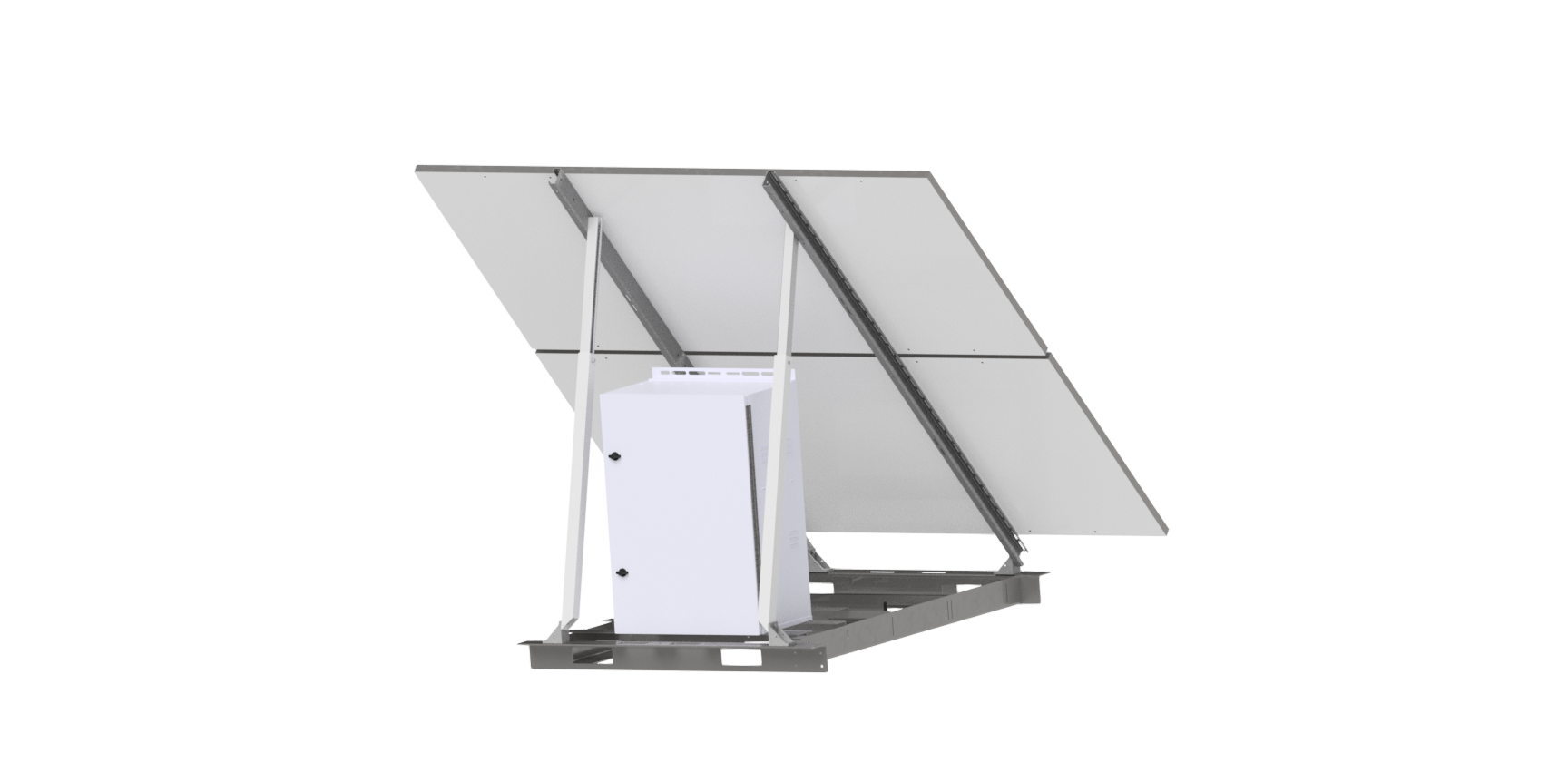

Compatible with M2-8D enclosure or T-4X8D chest enclosure (enclosures sold separately)
Compatible with 2″ Pole Stand for Steel Skid accessory

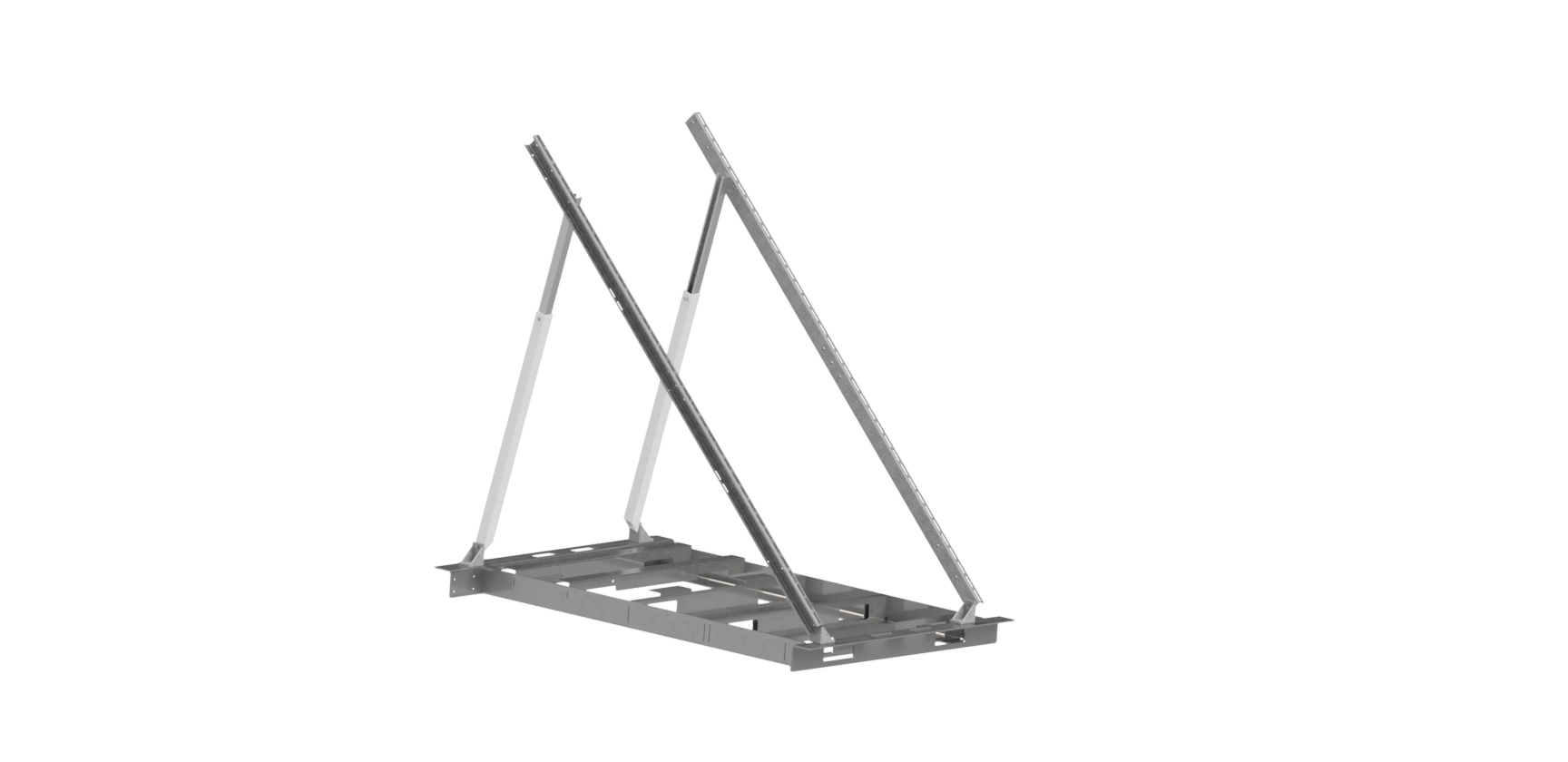

Designed to support our 96″ Roof/Ground Mount (mount sold separately)
Easy setup and deployment
Can hold self-contained and complete solar power system
Adjustable module angles from 42 degrees to 55 degrees
External Dimensions L x W x H: 6’7″ x 3’11” x 4.6″

Product Data

Data Sheet

RapidSet – Skid Structure for 96″ Mount and Enclosure

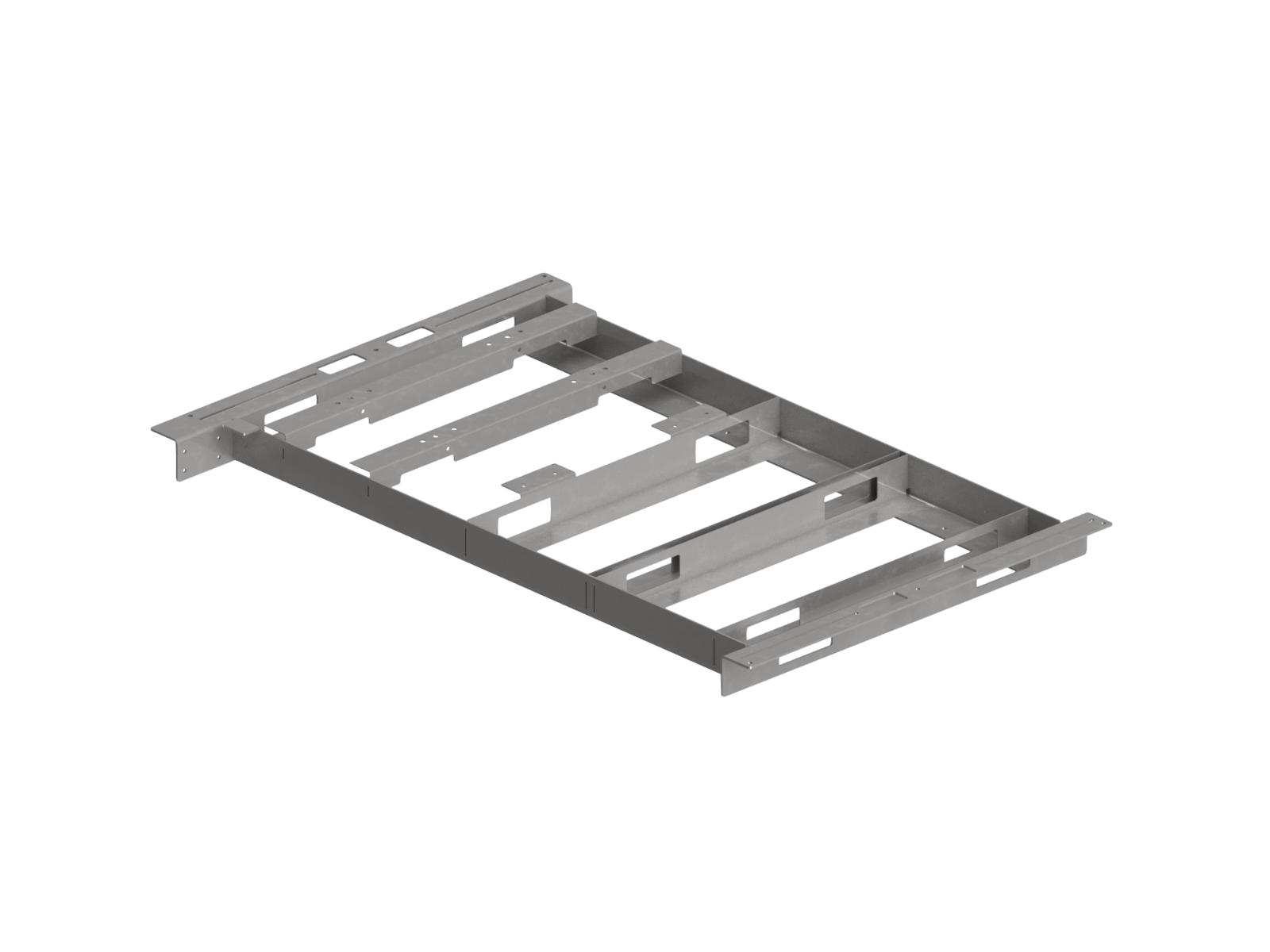

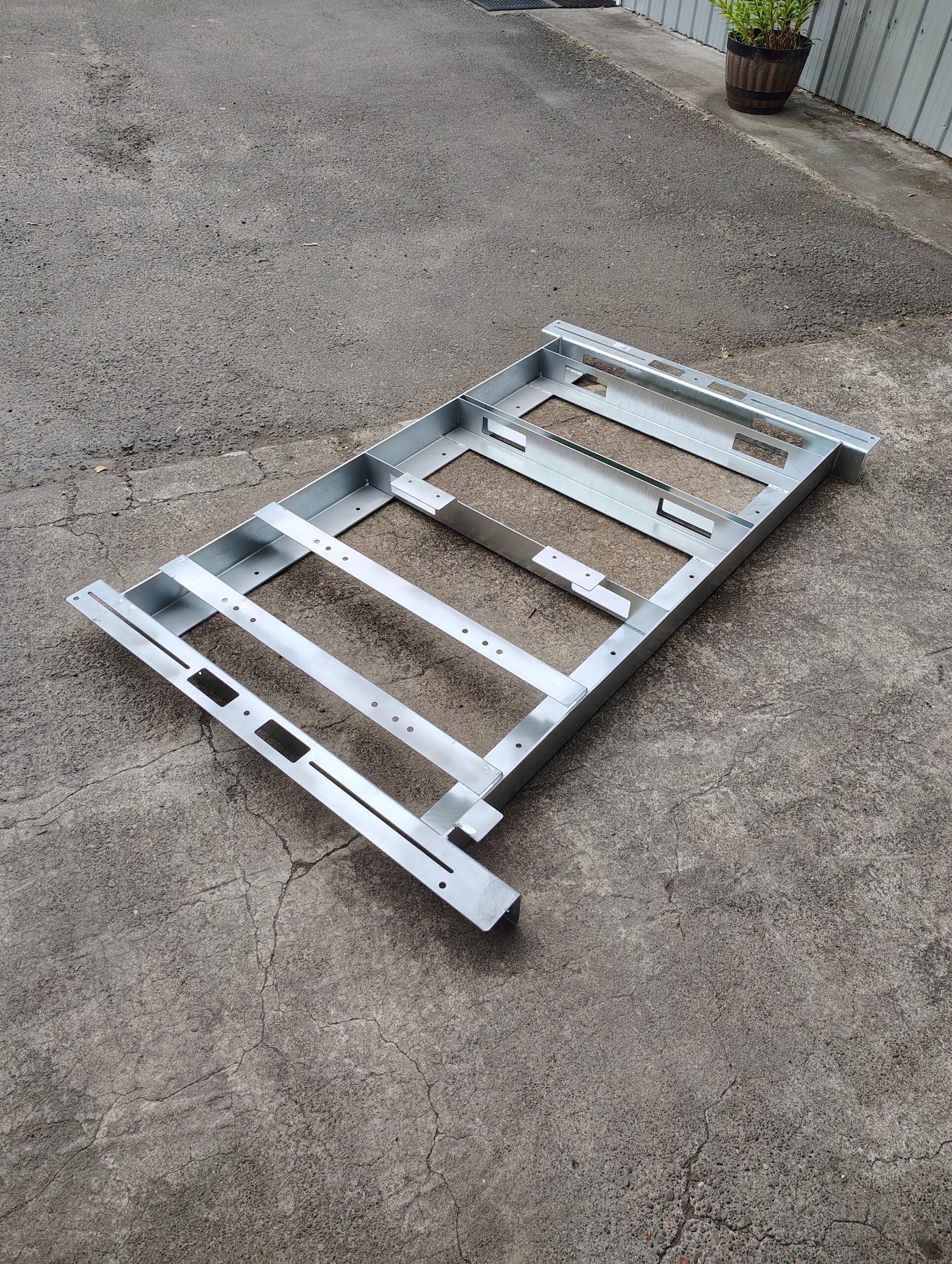

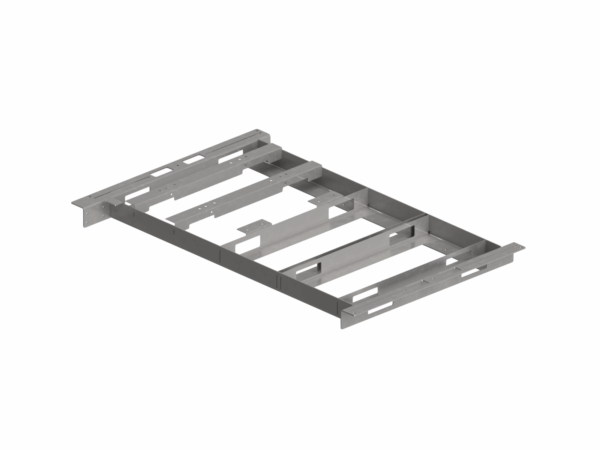

The SunWize® Power & Battery Steel Skid structure is a quick solution for temporary or long-term system deployment. The hot-dipped galvanized steel skid requires no pre-existing structure for mounting and can hold a complete solar power system, including enclosure, batteries, modules, and electronics. Forklift pockets in the skid make relocation easy for on-site handling. The skid supports SunWize series enclosures, listed below, which can fit up to (4) BCI Group 8D Batteries or (8) BCI Group 31 batteries. The enclosure is easily accessible at the back of the skid behind the modules. Requires user-supplied ballast blocking. Two ballast trays will accommodate 4” x 8” x 16” concrete blocks.

External dimensions for the Skid Structure are 79″ long, 52″ wide, and 4.5″ tall.
