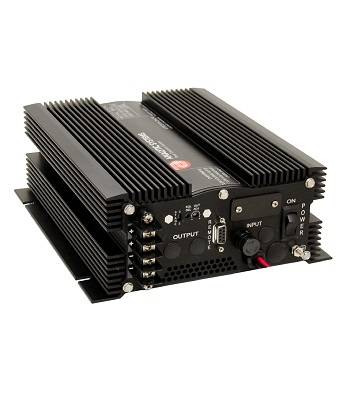

Analytic Systems VTC315 DC/DC Converter

Includes 3-year warranty. In-stock items usually ship in 1-3 business days. Back ordered products usually ship in 1-2 weeks.

From: $872.92$1,008.33


  • 280W continuous | 300W peak
  • 20-35V or 40-60V input | 12, 24, or 48V output
  • High tolerance for shock and vibration
  • Ultra-quiet low EMI operation
  • Current limiting and reverse input protection
  • Well-suited for demanding environments

Product Data

Analytic Systems VTC315 DC/DC Converter

The Analytic Systems VTC315 Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include current limiting, reverse battery hookup protection, output overvoltage crowbar circuit, and output short circuit shutdown with automatic recovery. Versions include VTC315-24-12 (part# 016617), VTC315-48-12 (part# 013027), VTC315-24-24 (part# 013840), VTC315-24-48 (part# 016946), VTC315-48-24 (part# 002199), and VTC315-48-48 (part# 013028).
