Solar Modules

Off Grid Solar Modules

Sunwize Power & Battery Solar Modules deliver top-quality performance for all photovoltaic applications including rural electrification, water pumping, telemetry, communications, and general battery charging. Sunwise modules can be used in single-module and multiple-module installations. Each module consists of 36 solar cells connected in series (except the SW90C, which is 48 cells in a series), providing maximum charging power.

These high quality solar module modules for industrial applications feature two (2) bypass diodes to protect against hot-spot damage during partial shading. Junction box has (4)-1/2” conduit knockouts and (2) pre-installed cord grips.

SunWize also carries many other lines of Solar Panels, including SolarTech Power, Yingli, Canadian Solar, and many more. We stock a full selection of both off-grid 12V C1D2 & UL listed modules, as well as, 24V large format and commercial solar modules. We also manufacture custom and special solar modules for small off-grid applications. If you’re looking to browse our full selection of component solar modules available for purchase, please visit sunwizeconnect.com.

View Data Sheet for SWPB Solar Modules
View Installation Guide for SWPB Solar Modules
Shop All Solar Modules

In Addition to our main line of 12V off-grid modules, SunWize Also Manufactures Custom and Specialty Modules, See link below or click here

Features include:

  • The glass surface is impact resistant and allows maximum light transmission
  • Single crystalline solar cells are encapsulated and bonded to the glass in multiple layers of ethylene vinyl acetate (EVA) and laminated with a white Tedlar backing insuring long life in severe environmental conditions
  • A weather resistant junction box accomodates all wiring methods including moisture-tight strain relief connectors and electrical conduit. Bypass diodes insure reliable operation
  • Anodized aluminum tubular frames add strength and durability to the modules with pre-drilled mounting holes
  • UL listed to UL-1703 and cUL listed FM approved for hazardous locations Class 1 Div. 2 , and ISPRA certified to IEC61215. All Sunwize Power & Battery modules carry a 2-year workmanship and limited 15-year performance warranty

SunWize ® Solar Modules (30W – 60W / 12V)

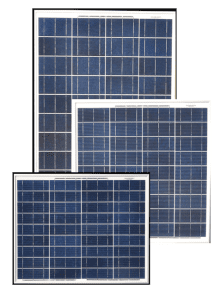

Solar-Modules-40W-80W-12V
High quality solar module modules for industrial applications. Top-quality performance for all solar electric power applications such as monitoring and control, security, instrumentation, communications, and general battery charging. Two (2) bypass diodes protect against hot-spot damage during partial shading. Junction box has (4)-1/2” conduit knockouts and (2) pre-installed cord grips.

SWPB Module Data Sheet
SWPB Part #019385017098017114
Rated Power (Watts)30W40W60W
Voc Open Circuit Voltage (Volts)22.622.222.5
Isc Short Circuit Current (Amps)1.72.63.6
Vmp Rated Voltage (Volts)19.018.318.3
Imp Rated Current (Amps)1.62.23.3
Max System Voltage (VDC)1000V1000V1000V
Series Fuse Rating (Amps)101010
Dimensions and Weights
Module Size (l x w) inches16.2 x 26.221.3 x 26.427.6 x 26.4
Module Size (l x w) mm666 x 412670 x 540700 x 670
Weight (lb / kg)10.0 / 4.59.9 / 4.512.1 / 5.5
Electrical / Thermal Parameters
Voltage Temperature coefficient (Voc)-0.35%/°C
Current Temperature coefficient (Isc)0.05%/°C
Power Temperature coefficient (Pmax)-0.40%/°C
Peak Power Tolerance+/-3%
Warranty
Limited Workmanship Warranty2 years
Limited Performance Warranty15 years

SunWize ® Solar Modules (80W – 110W / 12V)

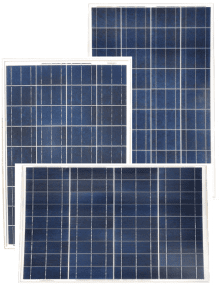

100-150W solar modules
High quality solar module modules for industrial applications. Top-quality performance for all solar electric power applications such as monitoring and control, security, instrumentation, communications, and general battery charging. Two (2) bypass diodes protect against hot-spot damage during partial shading. Junction box has (4)-1/2” conduit knockouts and (2) pre-installed cord grips.

SWPB Module Data Sheet
SWPB Part #017115017102
Rated Power (Watts)80W110W
Voc Open Circuit Voltage (Volts)22.622.7
Isc Short Circuit Current (Amps)4.76.3
Vmp Rated Voltage (Volts)18.718.4
Imp Rated Current (Amps)4.36.0
Max System Voltage (VDC)1000V1000V
Series Fuse Rating (Amps)1015
Dimensions and Weights

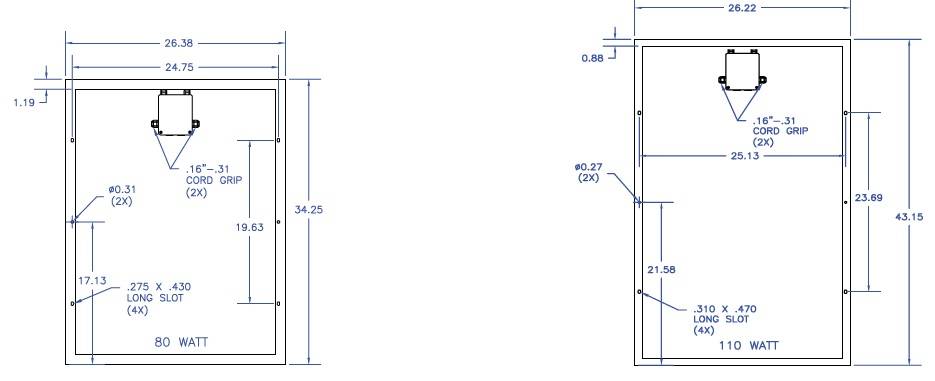

Module Size (l x w) inches35.3 x 26.443.1 x 26.2
Module Size (l x w) mm870 x 6701096 x 666
Weight (lb / kg)15.4 / 7.017.6 / 8.0
Electrical / Thermal Parameters
Voltage Temperature coefficient (Voc)-0.35%/°C
Current Temperature coefficient (Isc)0.05%/°C
Power Temperature coefficient (Pmax)-0.40%/°C
Peak Power Tolerance+/-3%
Warranty
Limited Workmanship Warranty2 years
Limited Performance Warranty15 years

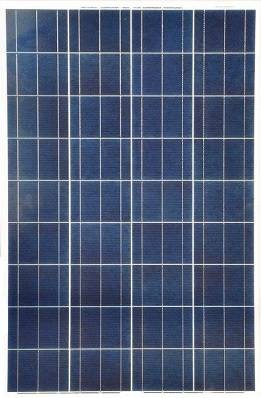

SunWize ® Solar Modules (150W / 12V)

100-150W solar modules High quality solar module modules for industrial applications. Top-quality performance for all solar electric power applications such as monitoring and control, security, instrumentation, communications, and general battery charging. Two (2) bypass diodes protect against hot-spot damage during partial shading. Junction box has (4)-1/2” conduit knockouts and (2) pre-installed cord grips. The new SWPB 150W (019922) features UL-Certification and a 4 ft. Nimbo to Amphenol H4 cable pre-installed for easy installation. SWPB Module Data Sheet
SWPB Part #017103 019922
Rated Power (Watts)150W150W
Voc Open Circuit Voltage (Volts)22.522.5
Isc Short Circuit Current (Amps)8.78.7
Vmp Rated Voltage (Volts)18.318.3
Imp Rated Current (Amps)8.28.2
Max System Voltage (VDC)1000V1000V
Series Fuse Rating (Amps)1515
Dimensions and Weights

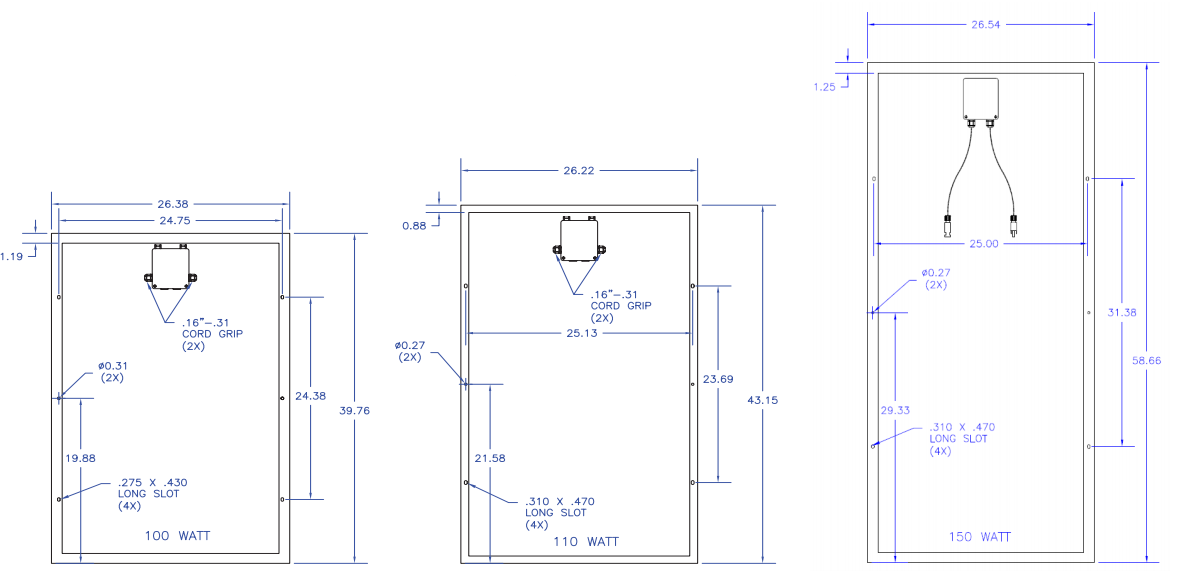

Module Size (l x w) inches58.7 x 26.558.7 x 26.5
Module Size (l x w) mm1490 x 6741490 x 674
Weight (lb / kg)25.4 / 11.525.4 / 11.5
Electrical / Thermal Parameters
Voltage Temperature coefficient (Voc)-0.35%/°C
Current Temperature coefficient (Isc)0.05%/°C
Power Temperature coefficient (Pmax)-0.40%/°C
Peak Power Tolerance+/-3%
Warranty
Limited Workmanship Warranty2 years
Limited Performance Warranty15 years
