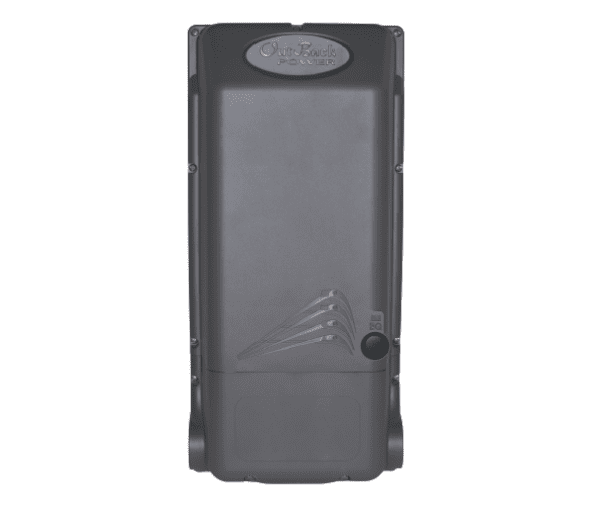

OutBack FM100-300VDC-AFCI Charge Controller

Advanced controller with 300VDC stringing, AFCI, OpticsRE integration, and many other features.

From: $889.02

Part Number: 020491

Features

• 24-60 VDC | 100A
• MPPT: Maximum Power Point Tracking
• Includes LVD protection and battery temperature compensation
• Showcases an intuitive interface and user-programmable charge regime

Product Data

Accessories

Product Back Ordered

OutBack FM100-300VDC-AFCI Charge Controller

The FM100-300VDC-AFCI is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power. The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your solar array power yield up to 30% compared to non-MPPT controllers. The FM100-300VDC-AFCI includes a built-in, backlit 80 character display showing the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack Power network communications allow the FM100-300VDC-AFCIDC charge controller to be remotely programmed and monitored via a MATE system display providing unrivaled complete system integration.

Looking for more technical information on solar charge controllers? View our Tech-Note on different types of charge controllers!
